Setup

General parameters

Open: Setup > General parameters > Parameter values

You can set parameters to provide default entry values. The following group is applicable to SEPA mandates:

TC (Common data) chapter / SDD (SDD management) group

To add or amend the default parameter, click Detail from the Actions menu.

SDDMGT

Manage SDD (SEPA Direct Debit) mandates? Yes, the company manages SDD mandates. No, if the company does not manage SDD mandates. You must set this parameter to Yes. Defined at the folder level. Context: Control is applied to sales invoices.

Sequence numbers

Open: Setup > General parameters > Sequence number definition > Assignment

Open: Setup > General parameters > Sequence number definition > Structures

Open: Development > Utilities > Miscellaneous > Sequence number values

Unique mandate reference structure

The unique mandate reference is a mandatory information in the SDD process and must be communicated to the debtor. Therefore, the mandate reference should be included in the mandate letter signed by the debtor. The Unique Mandate Reference is not an editable field in Sage X3.

In order to automatically manage mandate numbers in Sage X3, the sequence number structure for the management of SEPA mandate must be defined.

1. The sequence number Assignment function (GESTCA) defines the sequence number which is used. Sequence numbers used by SEPA mandates are in the module A/P-A/R accounting.
   • Document type. Mandate reference.
   • Sequence. SDD.
   • Manual:
     • Set to Yes if the Mandate reference is manually entered.
     • Set to No if the Mandate reference is assigned automatically.
2. To generate SEPA mandate sequence numbers automatically the components that make up the structure of the sequence numbers have been defined as follows. You can use the Structures function (GESANM) to change the components to suit your organization.

   Sequence number counter	Description	Default components
   SDD	Mandate reference	5-character company, plus 10-character complement, plus 5 sequential numbers. For example, BE078ZZZ050D00000008.

The total length of the individual components is displayed in the Length field (Miscellaneous block).
You can use fewer characters but you cannot exceed this length.

Complement. In the case of a direct debit, the complement refers to the Customer code.

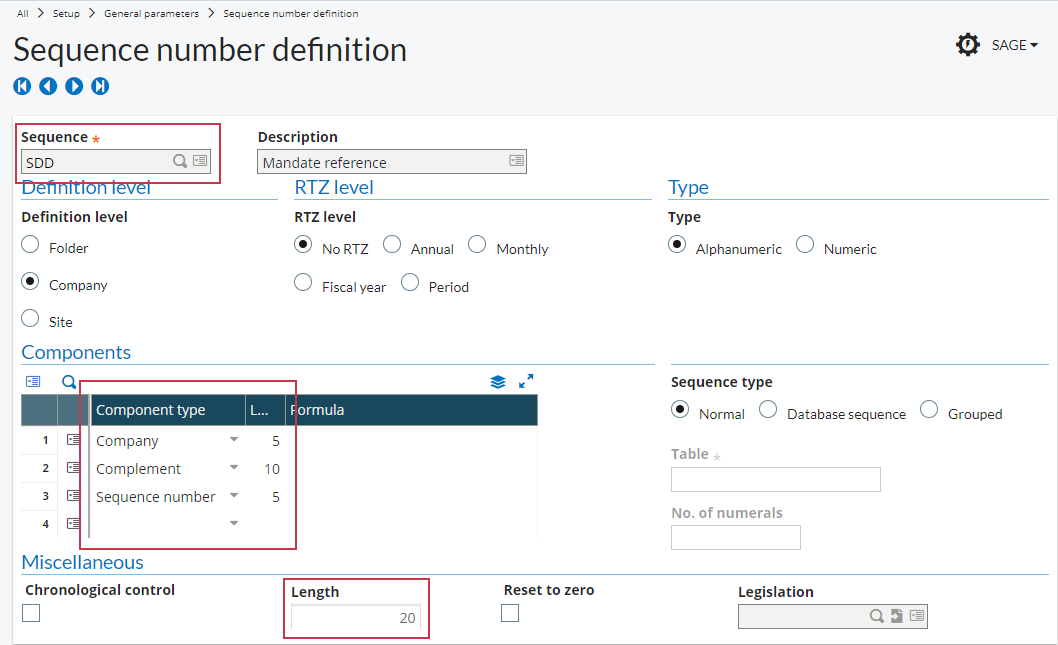

Structures (GESANM): SEPA mandates number structure (predefined)

3. Now set the sequence number start value. You can do this using one of the following methods:
   1. Select the Reset to zero check box in the Miscellaneous block.
   2. Use the Sequence number values function (MODCPT), if available, to set the start value for each component of the counter.

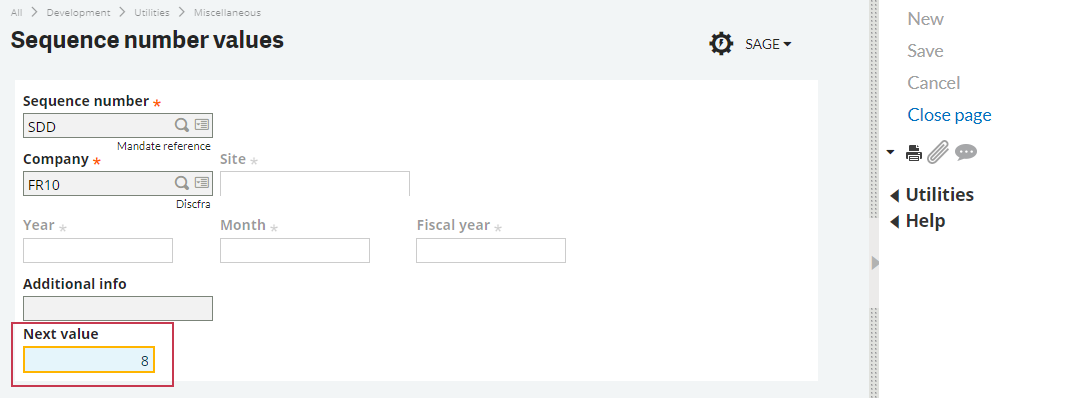

Sequence number values (MODCPT): SDD - SEPA mandates sequence number

Remove the Sequence number values function (MODCPT) from the menu when SEPA mandates are "live". This will ensure the sequence numbers will remain chronological.

Limitations

Companies

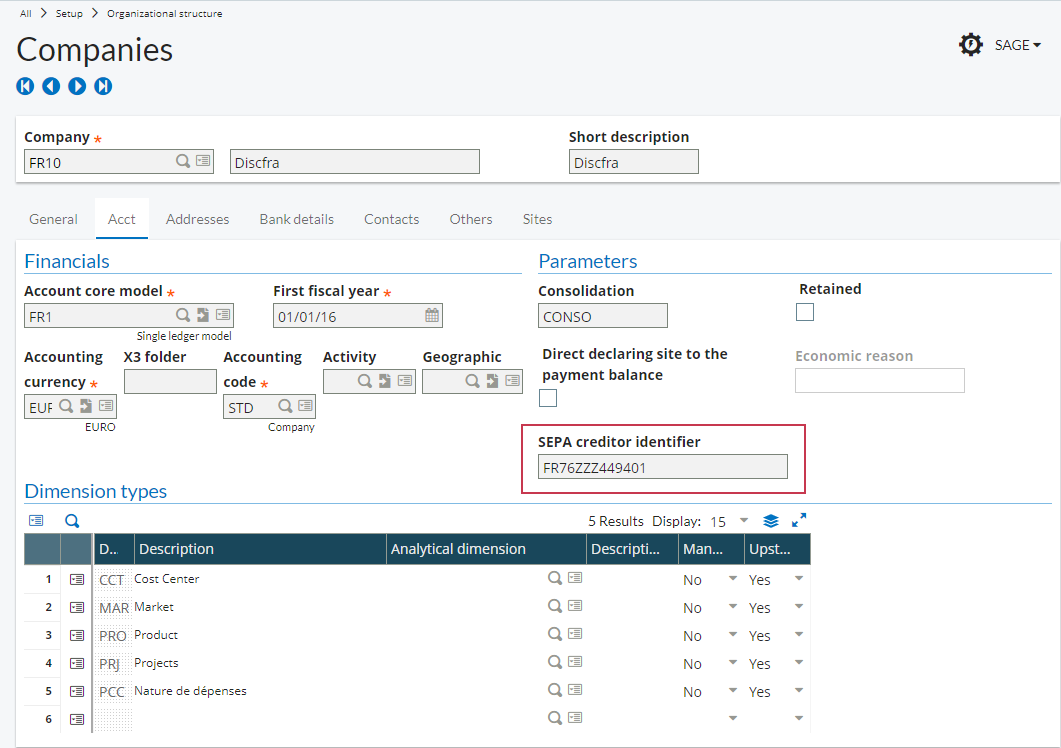

Open: Setup > Organizational structure > Companies

Like the mandate reference, the SEPA Creditor Identifier (CI) is a mandatory information in the SDD process. It has been created in the SDD scheme to allow debtors as well as their banks to return to the creditor for refunds and complaints, and to check the existence of a mandate upon presentation of a collection by the creditor.

These actions needed a unique identification of creditors, meaning that each CI only refers to one creditor. A single creditor, however, is free to use more than one CI or only to use one CI for the initiation of collections in all SEPA countries. The CI is part of the unique mandate-key composed of the CI and the unique mandate reference.

Setup

• Acct section:

  • SEPA creditor identifier. The CI structure is based on the following algorithm:
    • Position 1-2 populated with the ISO country code.
    • Position 3-4 populated with the check digit according to ISO 7064 Mod 97-10.
    • Position 5-7 populated with the Creditor Business Code (if not used then populated with ZZZ).

    • Position 8 onwards populated with the Creditor National Identifier. This is the country specific part of the identifier which corresponds to the national identifier of the creditor. The Creditor National Identifier part of the CI varies by country.

Limitations

Import/export templates

Open: Setup > Usage > Imports/Exports > Import/export templates

Templates delivered with your system for importing and exporting SEPA mandates are available in the Import/export templates function (GESAOE).

MDT template

Use this template to import and export mandates.

This table lists the available data elements. Depending on the direction of flow, some data elements are mandatory.

No.	Table	Field	Description
1	MANDATE	CPY	Company
2	MANDATE	UMRNUM	Mandate reference
3	MANDATE	DES	Description
4	MANDATE	ACS	Access code
5	MANDATE	STA	Status
6	MANDATE	TYP	Type
7	MANDATE	PAYTYP	Payment type
8	MANDATE	SIGDAT	Signature date
9	MANDATE	SIGCTY	Signature place
10	MANDATE	MAIMDTFLG	Main mandate
11	MANDATE	FNLFLG	Final
12	MANDATE	PAYNBR	No. of direct debits
13	MANDATE	WIOFIRSEQ	Without first sequence
14	MANDATE	CPYADD	Company address code
15	MANDATE	MIGFLG	Migration
16	MANDATE	NTLMIGIDT	Migration national ID
17	MANDATE	BPCNUM	Customer code
18	MANDATE	BPCADD	Customer address code
19	MANDATE	IBACOD	IBAN code
20	MANDATE	AMDFLG	Amendment flag
21	MANDATE	FNLDBT	Final debtor
22	MANDATE	UDLCON	Underlying contract
23	MANDATE	SITNAM	Name of signatory
24	MANDATE	SITFNC	Function of signatory

MDTEXP template

This table lists the available data elements.

No.	Table	Field	Description
1	MANDATE	CPY	Company
2	MANDATE	UMRNUM	Mandate reference
3	MANDATE	DES	Description
4	MANDATE	ACS	Access code
5	MANDATE	STA	Status
6	MANDATE	TYP	Type
7	MANDATE	PAYTYP	Payment type
8	MANDATE	SIGDAT	Signature date
9	MANDATE	SIGCTY	Signature place
10	MANDATE	MAIMDTFLG	Main mandate
11	MANDATE	FNLFLG	Final
12	MANDATE	PAYNBR	No. of direct debits
13	MANDATE	ENDDAT	Mandate end date
14	MANDATE	WIOFIRSEQ	Without first sequence
15	MANDATE	CPYADD	Company address code
16	MANDATE	MIGFLG	Migration
17	MANDATE	NTLMIGIDT	Migration national ID
18	MANDATE	BPCNUM	Customer code
19	MANDATE	BPCADD	Customer address code
20	MANDATE	IBACOD	IBAN code
21	MANDATE	BICCOD	BIC code
22	MANDATE	TOTSDDPAY	Total direct debits
23	MANDATE	NBRSDDPAY	Number of payments
24	MANDATE	AMDFLG	Amendment flag
25	MANDATE	FNLDBT	Final debtor
26	MANDATE	UDLCON	Underlying contract
27	MANDATE	SITNAM	Name of signatory
28	MANDATE	SITFNC	Function of signatory
29	COMPANY	SCINUM	SEPA creditor ID
30	BPCUSTOMER	BPCNAM	Company name
31	BPADDRESS	BPADES	Description
32	BPADDRESS	BPAADDLIG(0)	Address line
33	BPADDRESS	BPAADDLIG(1)	Address line
34	BPADDRESS	BPAADDLIG(2)	Address line
35	BPADDRESS	POSCOD	Postal code
36	BPADDRESS	CTY	City
37	BPADDRESS	SAT	Country
38	BPADDRESS	CRY	Country
39	BPADDRESS	CRYNAM	Country name
40	BPADDRESS	TEL(0)	Telephone
41	BPADDRESS	TEL(1)	Telephone
42	BPADDRESS	TEL(2)	Telephone
43	BPADDRESS	TEL(3)	Telephone
44	BPADDRESS	TEL(4)	Telephone
45	BPADDRESS	FAX	Fax
46	BPADDRESS	MOB	Mobile phone
47	BPADDRESS	WEB(0)	Internet address
48	BPADDRESS	WEB(1)	Internet address
49	BPADDRESS	WEB(2)	Internet address
50	BPADDRESS	WEB(3)	Internet address
51	BPADDRESS	WEB(4)	Internet address
52	BPADDRESS	FCYWEB	Website
53	HISTOMDT	PAYDAT	Direct debit date
54	HISTOMDT	PAYNUM	Payment no.
55	HISTOMDT	FRMNUM	Slip no.
56	HISTOMDT	SEQTYP	Sequence type
57	HISTOMDT	DPT	Dispute reason
58	HISTOMDT	AMT	Amount
59	HISTOMDT	CUR	Currency

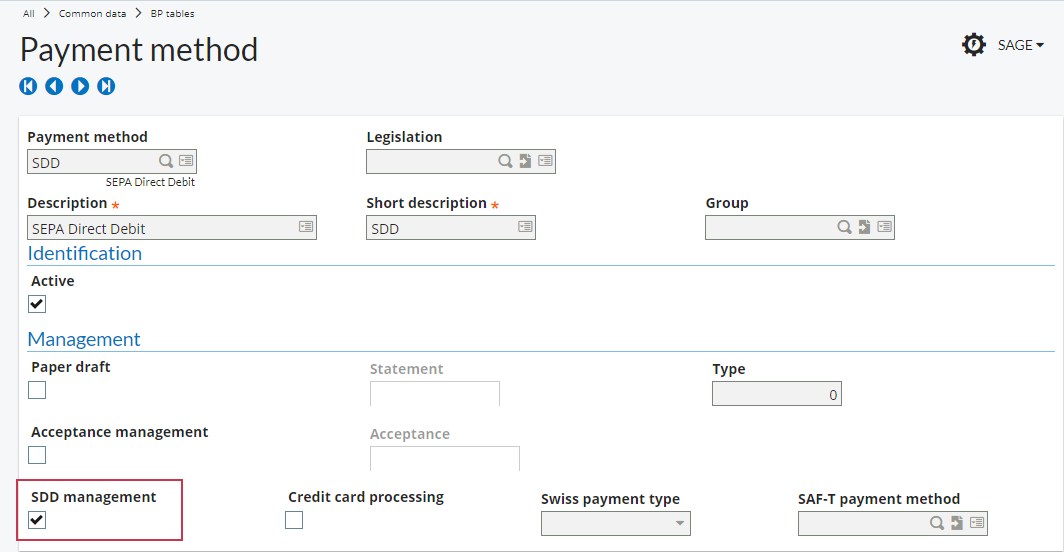

Payment methods (GESTAM)

Open: Common data > BP tables > Payment methods

Use the Payment methods function (GESTAM) to define payment methods applicable to SEPA mandate processes and functions.

Setup

In the Management block, select the SSD management check box to specify that the payment method is linked to the SDD mandate management mode (SEPA Direct Debits). In this case, the Statement field becomes inactive. Therefore, it is not possible to enter a statement code for a SDD mandate type. In other words, the SDD open items never appear on a statement. Conversely, the Statement field becomes active when the SDD management box is cleared.

Task management

Open: Usage > Batch server > Task management

Use the Task management function (GESABT) to create new batch tasks or to modify the characteristics of existing tasks.

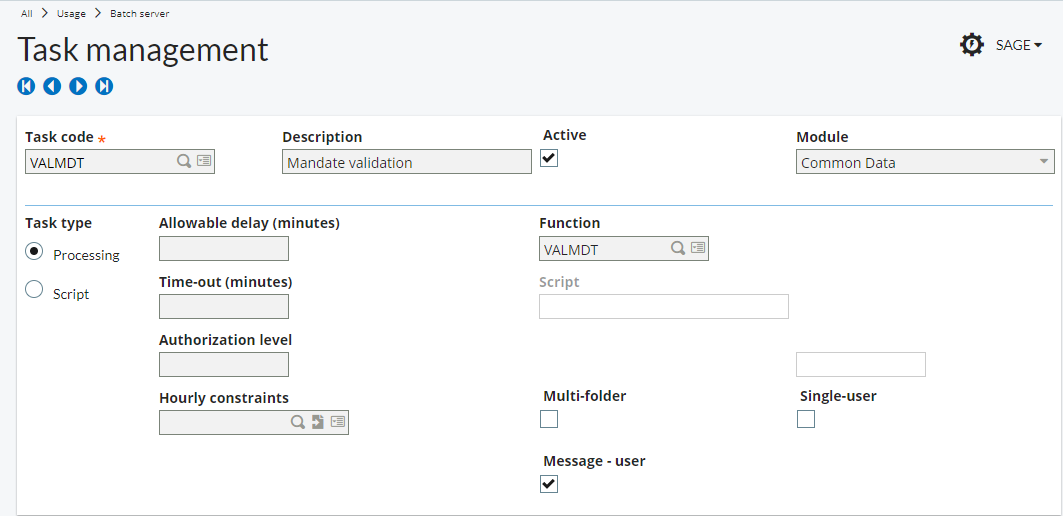

Mandate validation (VALMDT)

Setup of the task for mandate validation: VALMDT.

Mandate closing (MDTCLS)

Setup the task for mandate closing: MDTCLS.
