Appendix 1: Example product

Rotating tower crane

This example demonstrates products that would be defined as individual production BOMs to deliver a rotating tower crane to a customer.

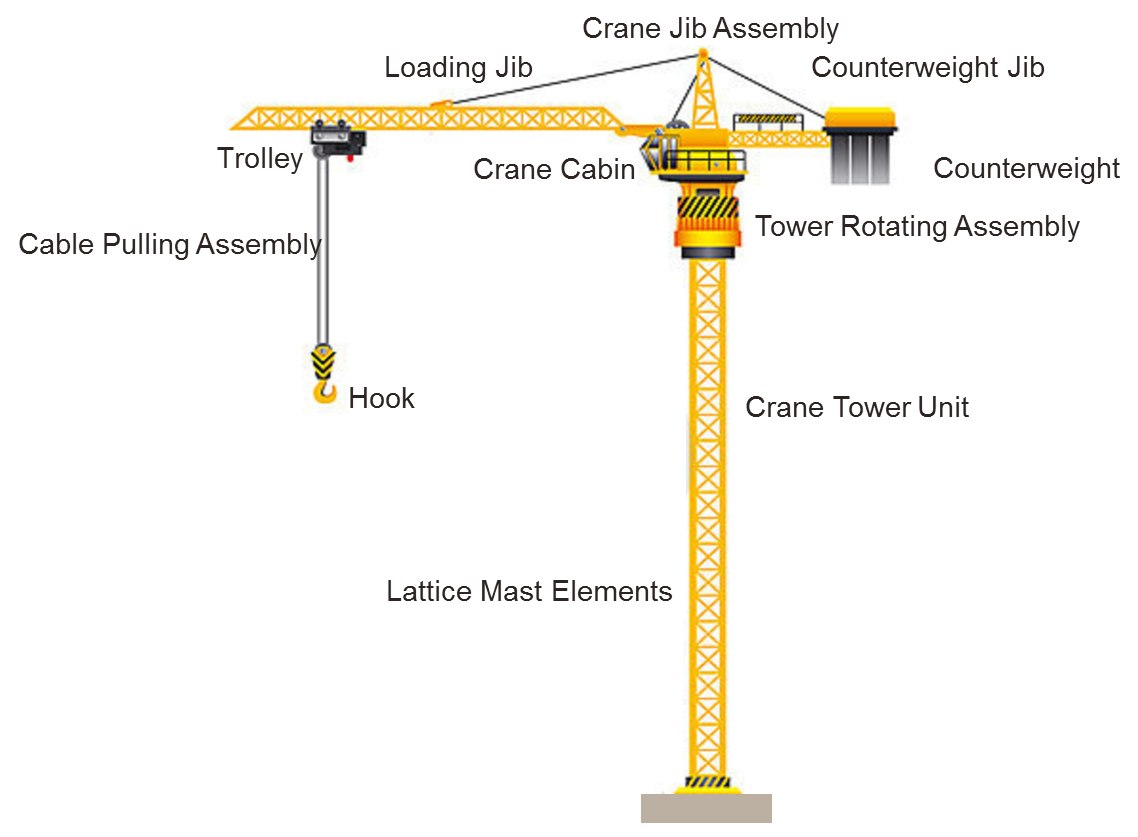

The following diagram shows the main components of a rotating tower crane (RTC).

Reference data

Bill of materials (BOM) and project link

Component	Description	Qty.	Reorder	Product management mode	Project link	Material standard cost	Deliverable?	Sold product?
COM100	RTC Rotating Tower Crane 40M	1	Manufacturing	Not managed, Available stock	Labor task (assembly)			Yes
.. COM101	RTC Crane Tower Unit 40M	1	Manufacturing	Not managed, Available stock	Labor task (assembly)
.. .. COM102	RTC Lattice Mast Element	8	Manufacturing	By order	Material task		Yes
.. .. .. RAW015	RTC Metal brace	192	Purchase	Available stock		1000
.. .. .. RAW016	RTC Braces fixture	320	Purchase	Available stock		40
.. .. .. RAW017	RTC Screw	640	Purchase	Available stock		10
.. .. .. RAW906	Paint, yellow	16	Purchase	Available stock		20
.. .. RAW017	RTC Screw	80	Purchase	Available stock		10
.. .. COM103	RTC Tower Rotating Assembly	1	Manufacturing	By order	Material task		Yes
.. .. .. RMP004	RTC Drive sprocket wheel	5	Purchase	By order		3000
.. .. .. RMP001	RTC Rotating drive	1	Purchase	By order		50000
.. .. COM104	RTC Crane Cabin	1	Manufacturing	By order	Material task		Yes
.. .. .. COM105	RTC Crane Cabin Chassis	1	Manufacturing	By order
.. .. .. .. RAW015	RTC Metal brace	60	Purchase	Available stock		1000
.. .. .. .. RAW016	RTC Braces fixture	60	Purchase	Available stock		40
.. .. .. .. RAW017	RTC Screw	100	Purchase	Available stock		10
.. .. .. .. RAW019	RTC Safety glass pane	8	Purchase	Available stock		1000
.. .. .. RAW020	RTC Crane drivers seat	1	Purchase	Available stock		200
.. .. .. RMP002	RTC Crane control panel	1	Purchase	By order		500
.. COM106	RTC Crane Jib Assembly 30M	1	Manufacturing	Not managed, Available stock	Labor task (assembly)
.. .. COM107	RTC Loading Jib 30M	1	Manufacturing	By order	Material task		Yes
.. .. .. COM110	RTC Loading Jib Element	6	Manufacturing	By order
.. .. .. .. RAW015	RTC Metal brace	108	Purchase	Available stock		1000
.. .. .. .. RAW016	RTC Braces fixture	180	Purchase	Available stock		40
.. .. .. .. RAW017	RTC Screw	360	Purchase	Available stock		10
.. .. .. .. RAW906	Paint, yellow	12	Purchase	Available stock		20
.. .. .. RAW017	RTC Screw	60	Purchase	Available stock		10
.. .. .. RMP003	RTC Crane trolly	1	Purchase	By order		5000
.. .. .. RAW025	RTC Drawbar to fix jib	2	Purchase	Available stock
.. .. COM108	RTC Counterweight Jib 10M	1	Manufacturing	By order	Material task		Yes
.. .. .. RAW015	RTC Metal brace	180	Purchase	Available stock		1000
.. .. .. RAW021	RTC Counterbalance concrete	5	Purchase	By order		2000
.. .. .. RAW025	RTC Drawbar to fix jib	2	Purchase	Available stock		2000
.. COM109	RTC Cable Pulling Assembly	1	Manufacturing	Not managed, Available stock	Labor task (assembly)
.. .. RMP005	RTC Crane engine	1	Purchase	By order	Material task	10000	Yes
.. .. RAW023	RTC Pulling cable	1	Purchase	Available stock	Material task	5000	Yes
.. .. RAW024	RTC Hook	1	Purchase	Available stock	Material task	4000	Yes
