Installing the weighing station

Add-ons

Component	On version
ILOG connector	Windows® 7, 8.1, 10

ILOG connector

Open: Administration > Utilities > Installation > Ilog Connector

The ILOG connector provides a link between Sage X3, physical weighing scales, and Gantt charts.

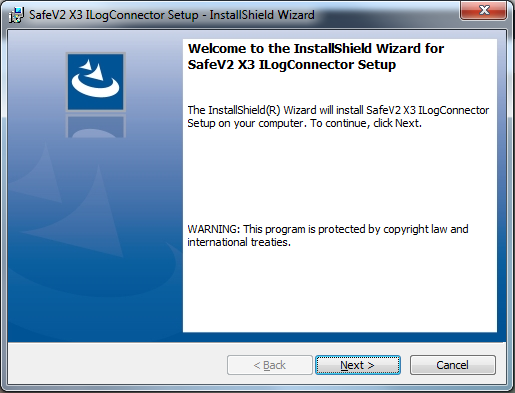

Use the wizard to install it.

1. Open the downloaded installation file (safex3-ilogconnector-installer-x86_64.exe).



2. Select Next.
3. When the installation is complete, select Finish.
4. Read the terms of the License Agreement. If you agree with them, select Yes.
5. Read the terms of the next License Agreement. If you agree with them, select Yes.

Compatible weigh scales

Two companies manufacture weigh scales that are compatible with the Sage X3 Weighing module: METTLER TOLEDO and Minebea Intec.

Weigh scales are connected to the client via the COM port (RS232).

To eliminate the need for physical interaction, the Mettler SICS protocol has a Full control mode. Full control mode provides complete remote control of METTLER TOLEDO scales and indicators.

METTLER TOLEDO

Weigh scale	Comments
BBA4xx	BBA422 - BBA425 - BBA432 - BBA442 - BBA462
Excellence XS	XS-S - XS-M - XS-L
Excellence Plus XP	XP-M - XP-L
ICS4xx	All models are compatible with the Sage X3 Weighing module.
ICS466x	Used in hazardous areas.
ICS6xx	All models are compatible with the Sage X3 Weighing module.
ID5sx	Used in hazardous areas.
ID7	ID7 - ID7 2000
IND560x	Used in hazardous areas.
IND690	IND690 - IND690XX
IND890	IND890 - IND890-10 - IND890-15 - IND890-19 - IND890com
ML	ML-T
MS	MS-L - MS-TS
PG	PG-S
PR
Spider SW	METTLER TOLDEO discontinued all platforms in January 2005.
Viper SW x SM	METTLER TOLDEO discontinued scales in January 2005.

Configuration: Full control mode

To remove the need for physical interaction with METTLER TOLEDO scales and indicators using the SICS protocol, Sage X3 sends RAZ and TAR commands directly.

To achieve Full control mode, you need to complete the following steps:

1. Locate your Weighing connector install directory. For example, C:\Program Files (x86)\Sage\WeighingConnector\.

2. Open the x3Scales.ini file.

   In the Communication section, add FullControlMode=1.

   If the Communication section is missing, you need to add [Communication].

3. In the Weighing module:

   1. Select the Zero button.
   2. Select the Tare button.

Command	Function	Level SICS	Specifics	Constant name	Weighing operation	BBA4xx	XS	XP	ICS4x5 ICS685	ICS466x	ID5	ID7	IND560x	IND690	IND890	ML	MS	PG	PR	SPIDER	Viper SW
I4		0			SERIAL_NUM	X	X		X	X	-	X	X	X	X						X
'Z'		0		REMISEAZERO	RAZ	X	X		X	X	-	X	X	X	X						X
'S'		0		NET	PDS_S	X	X		X	X	-	X	X	X	X						X
SI		0		NET, IMMEDIAT	PDS_I	X	X		X	X	-	X	X	X	X						X
SIR		0		NET, IMMEDIAT, REPEAT	PDS_IR	X	X		X	X	-	X	X	X	X						X
'K'		1			KEY_PAC	X	X		X	X	-	X	-	X	X						X
K 2		1		LOCKK	E_KBD	X	X		X	X	-	X	-	X	X						X
K 3	ZERO	1	Default X3 key code: 2	KEYONLY	WAIT_MSG	2	5		2	2	-	1	-	20	20	3	1				2
	TARE		Default X3 key code: 3			3	10		3	3	-	3	-	21	21	3	1				3
K 4	ZERO	1	Default X3 key code: 2	UNLOCKK	D_KBD	2	2		2	2	-	2	-	20	20	2	2				2
	TARE		Default X3 key code: 3			3	1		1	1	-	1	-	21	21	2	2				3
'T'		1		TARE	DETAR	X	X		X	X	-	X	X	X	X						X
TA		1		SETTARE	TAR	X	X		X	X	-	X	X	X	X						X
TAC		1		RAZTARE	RAZ_TARE	X	X		X	X	-	X	X	X	X						X
'D'		1		DISPLAY	DSPL	X	X		X	X	-	X	-	X	X						X
DW		1		RAZDISPLAY	RAZ_DSPL	X	X		X	X	-	X	-	X							X
'U'		2		UNIT_POIDS	CHG_U	X	-		X	X	-	X	-	X	X						-
SX		2		NET, ARTICLE	ART_S	X	-		X	X	-	X	-	X	X						-
SXI		2		NET, ARTICLE, IMMEDIAT	ART_I	X	-		X	X	-	X	-	X	X						-
AW		3	Only for multi-tray models	APPLICATION, WRITE	CHG_P	-	-		-	-	-	X	-	X	X						-

Minebea Intec (previously Sartorius)

Weigh scale	Comments
Maxxis 5	All weighing scales connected to a Maxxis 5 weighing terminal are compatible with the Sage X3 Weighing module.
