Data tables

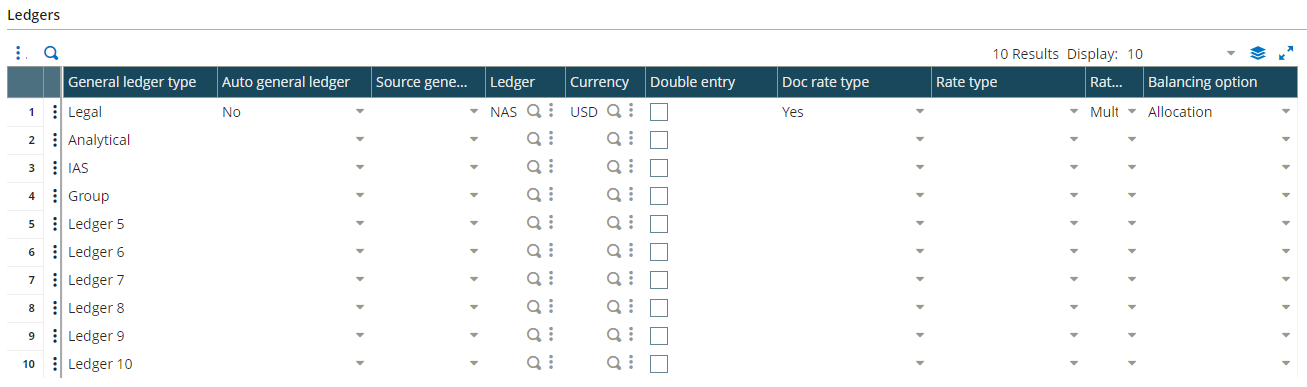

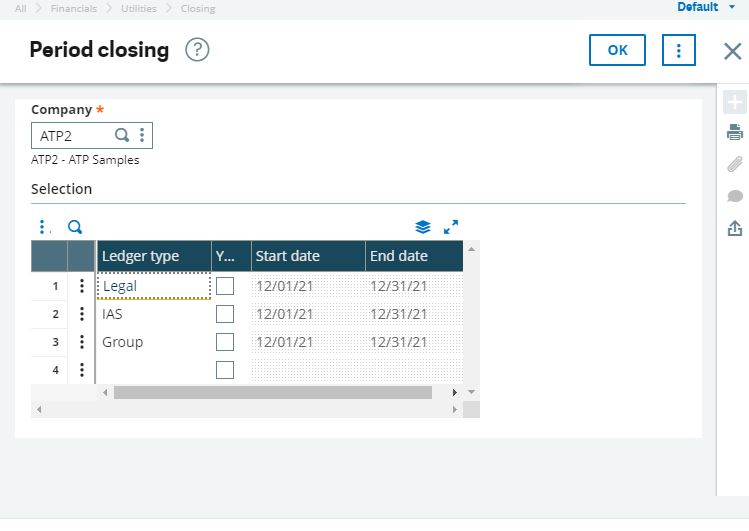

Extract from sample 0304A-PredefinedDataTableManagement.

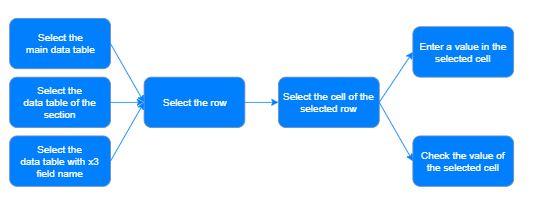

The following diagram illustrates one possible process:

First possibility: selecting the main data table of the page:

#Data table: select the main data table of the page

Given the user selects the main data table of the page

Second possibility: selecting the data table of the section selected:

#Data table: select the data table of the chosen section

Given the user selects the data table of section: "Ledgers"

Third possibility: selecting the data table by the X3 field name :

#Data table: select the data table with X3 field name

Given the user selects the data table with X3 field name: "GCM1_ARRAY_NBRLED"

To find the X3 data field name for a data table, see the section on Writing automated tests under Methodology and recommendations in the Sage X3 Automated Test Platform - User guide.

The following step definitions are available to enter the required values:

Using the field description

#Data table: row selection with column header name.

When the user selects row that has the text "Legal" in column with header: "General ledger type"

#Data table: select a value in the selected drop-down list of the selected row

Then the user selects cell with header: "Auto general ledger" of selected row

And the user selects the choice "No" of the selected cell

#Data table: enter a value in the selected text cell of the selected row and hits tab key.

Then the user selects cell with header: "Ledger" of selected row

And the user adds the text "NAS" in selected cell

Then the user selects cell with header: "Currency" of selected row

And the user adds the text "USD" in selected cell and hits tab key

Using the x3name value

#Data table: select a value in the selected drop down list of the selected row using the X3 field name (ScreenCode_FieldName).

Then the user selects cell with X3 field name: "GCM1_CFMAUT" of selected row

And the user selects the choice "No" of the selected cell

#Data table: enter a value in the selected text cell of the selected row using the X3 field name (ScreenCode_FieldName).

Then the user selects cell with X3 field name: "GCM1_LED" of selected row

And the user adds the text "NAS" in selected cell

Then the user selects cell with X3 field name: "GCM1_CUR" of selected row

And the user adds the text "USD" in selected cell

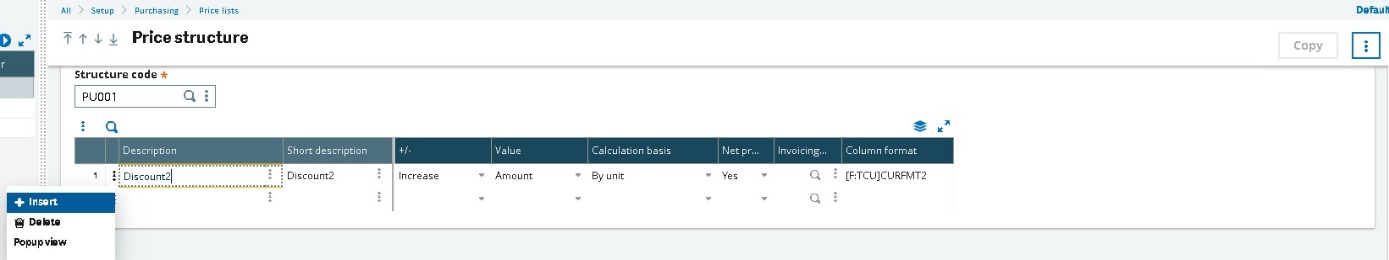

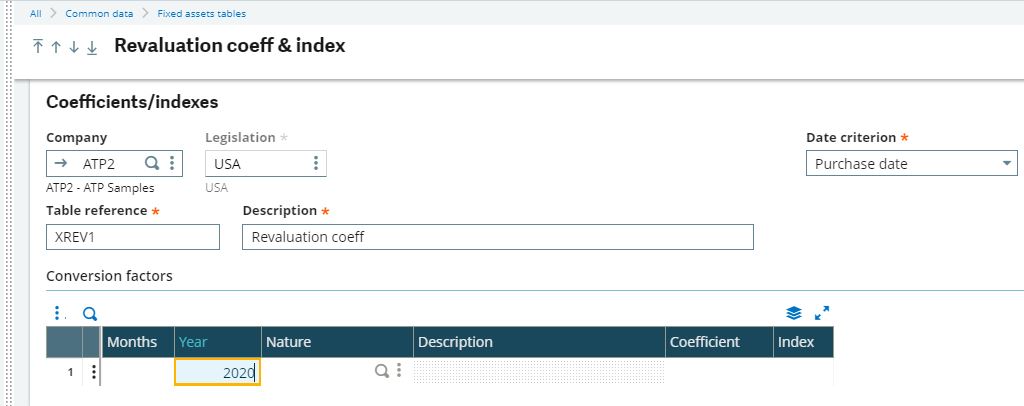

Extract from sample: 0304B-DynamicDataTableManagement.

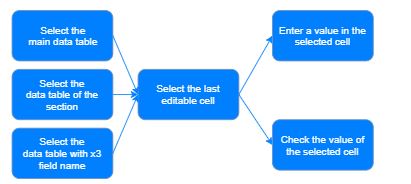

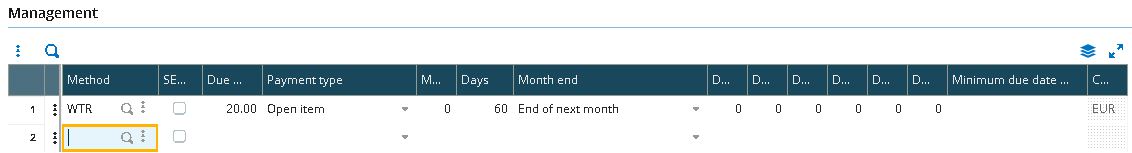

The diagram below illustrates another possible process:

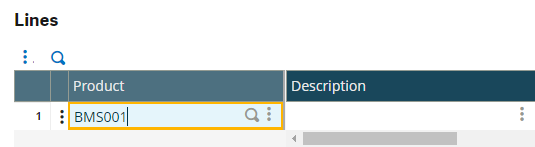

The following data table does not have a fixed section; therefore we will use the step definition that does not contain the keyword fixed:

As for the predefined data table, the data table needs to be selected first by using the following step definitions:

First possibility: selecting the main data table of the page:

#Data table: select the main data table of the page

Given the user selects the main data table of the page

Second possibility: selecting the data table of the chosen section:

#Data table: select data table of the chosen section

Given the user selects the data table of section: "Management"

Third possibility: Selecting the data table by the x3name:

#Data table: select data table with x3 field name

Given the user selects the data table with X3 field name: "TPT1_ARRAY_BASTAB"

The following step definitions are available to enter values on the first empty line of the data table:

Using field description:

#Data table: create a new line in the data table using cell column header

#Data table: enter a value in the selected Text cell

When the user selects last editable cell with column header: "Method"

Then the user adds the text "WTR" in selected cell

Using the x3name:

#Data table: create a new line in the data table using cell column header

#Data table: enter a value in the selected Text cell with X3 field name (ScreenCode_FieldName)

When the user selects last editable cell with X3 field name: "TPT1_PAM"

Then the user adds the text "WTR" in selected cell

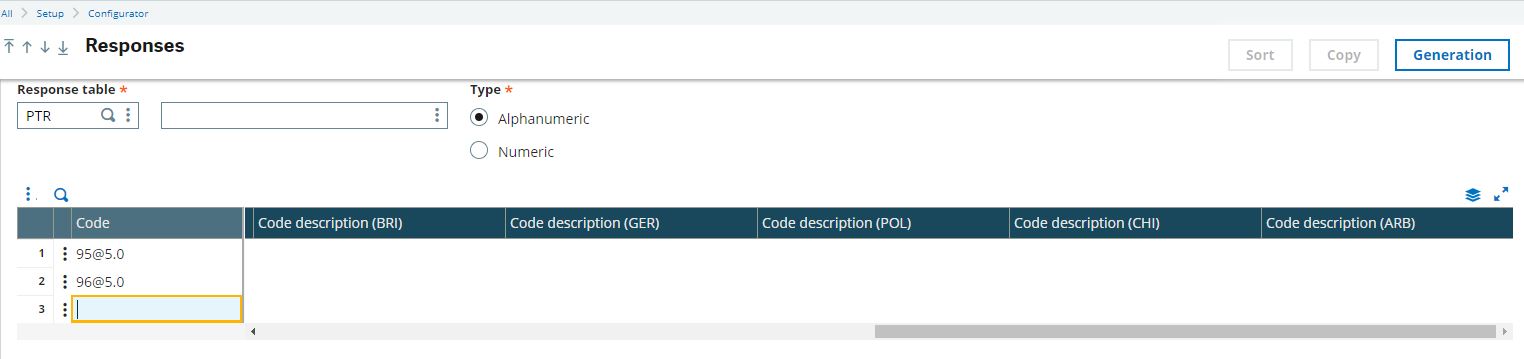

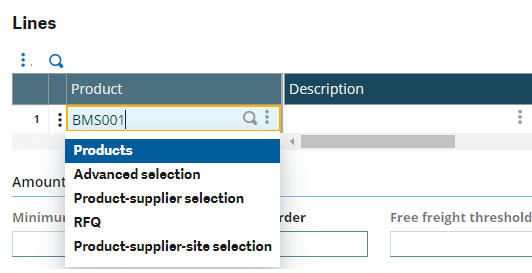

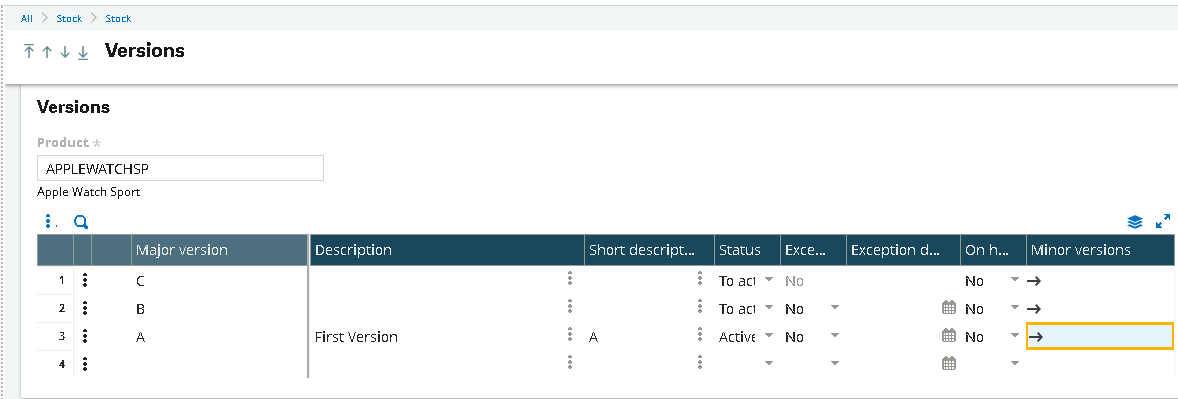

Extract from sample: 0304C-FixedDataTableManagement.

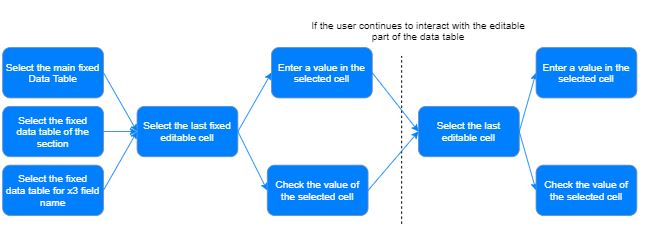

The following diagram illustrates one possible process when interacting with the fixed part of a dynamic data table:

The left part of the grid is the fixed part of the data table. In the following example, the Site and Ctrl. fields are defined in the fixed part of the data table. It is necessary to first select the fixed part of the data table to interact with these fields, and then to select the fixed cell. If the test continues to interact with the editable part of the data table, it won’t be necessary to select the non-fixed part of the data table. The editable cell will have to be selected by the test.

First possibility: selecting the main fixed data table of the page, as well as the fixed cell:

#Data table: select the fixed part of the main data table of the page

Given the user selects the main fixed data table of the page

Second possibility: selecting the fixed part of the data table selected section, and then selecting the fixed cell:

#Data table: select the fixed part of the data table chosen section

Given the user selects the fixed data table of section: "Lines"

Third possibility: selecting the fixed part of the data table by X3 field name:

#Data table: select the fixed part of the data table selected with X3 field name

Given the user selects the fixed data table for X3 field name: "WMAC2STDCO_ARRAY_NBLIG"

Then the test continues to interact with the fixed cell in the fixed part of the grid:

Using field description

#Data table: enter value in the last fixed cell selected

When the user selects last fixed cell with header: "Site"

Then the user adds the text "ATP21" in selected cell

Using x3name

#Data table: enter value in the last fixed cell selected with X3 field name (ScreenCode_FieldName)

When the user selects last fixed cell with X3 field name: "WMAC2STDCO_FCYLIN"

Then the user adds the text "ATP21" in selected cell

Then the test continues to interact with the editable cell in the right part of the grid:

Using field description

#Data table: enter value in the last editable cell selected

When the user selects last editable cell with column header: "Leg./Ana USA"

Then the user adds the text "20100" in selected cell

Using x3name

#Data table: enter value in the last editable cell selected with X3 field name (ScreenCode_FieldName)

When the user selects last editable cell with X3 field name: "WMAC2STDCO_ACC1"

Then the user adds the text "20100" in selected cell and hits enter key

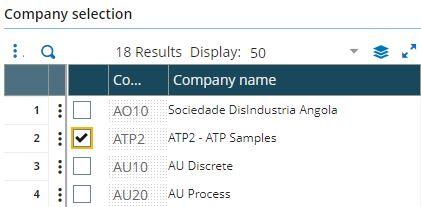

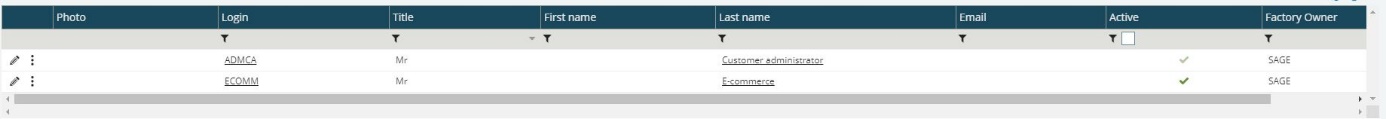

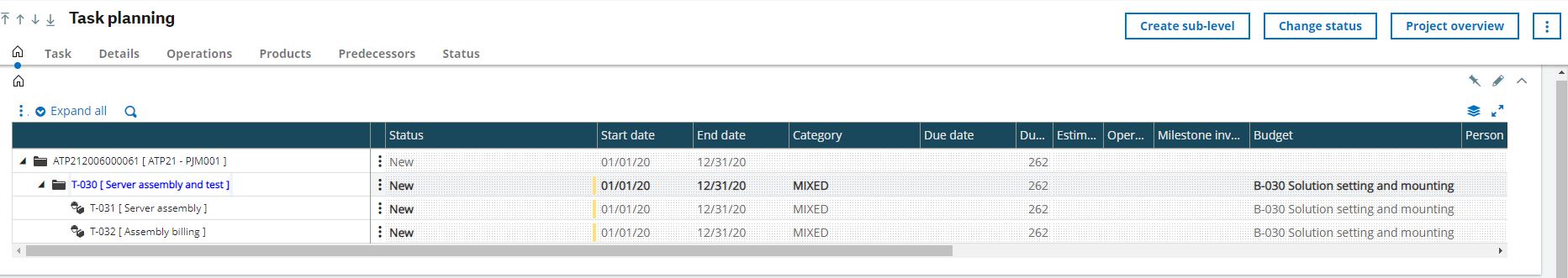

Extract from sample: 0304D-SyracuseDataTableManagement

#Data table: select a specific row and click on the Toolbox action "Detail"

When the user selects the main data table of the page

#Data table: click on the link cell to display the user information

Then the user clicks on the link in the cell that has the text "ADMCA" in cell with header: "Login"

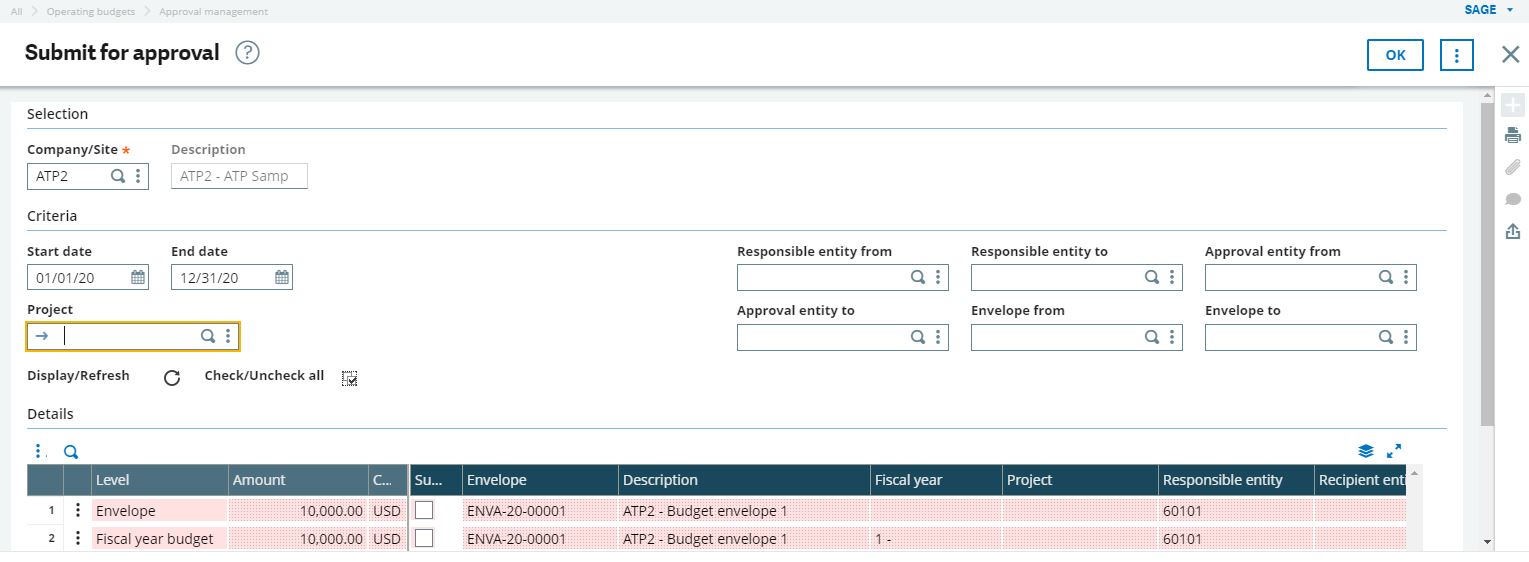

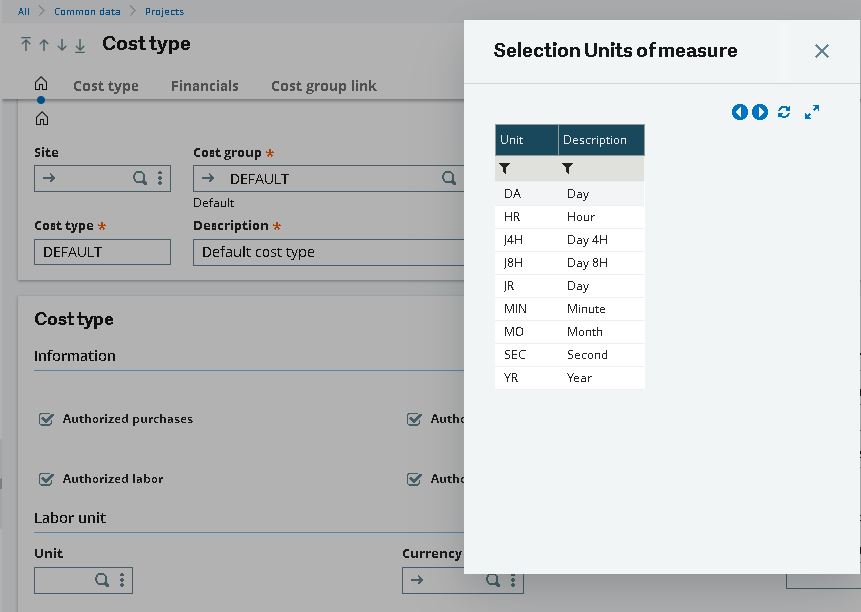

Extract from sample: 0304E-DataTableInPopupManagement.

#Data table: fixed data table interaction in a popup

Given the user selects the fixed data table in the popup

When the user selects first row of the selected data table

And the user selects cell with header "Level" of selected row

Then the selected cell is not empty

Extract from sample: 0304E-DataInPopupManagement.

#Data table: fixed data table interaction in a popup

Given the user selects the fixed data table in the popup

Then the user selects last fixed cell with header: "Level"

Then the selected cell is not empty

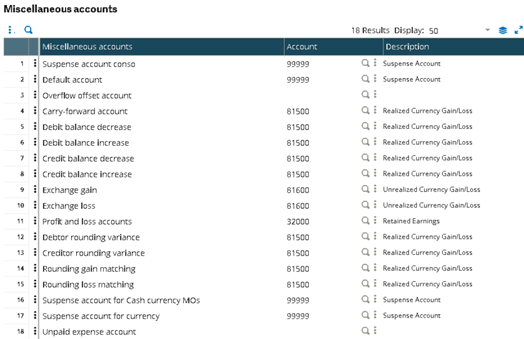

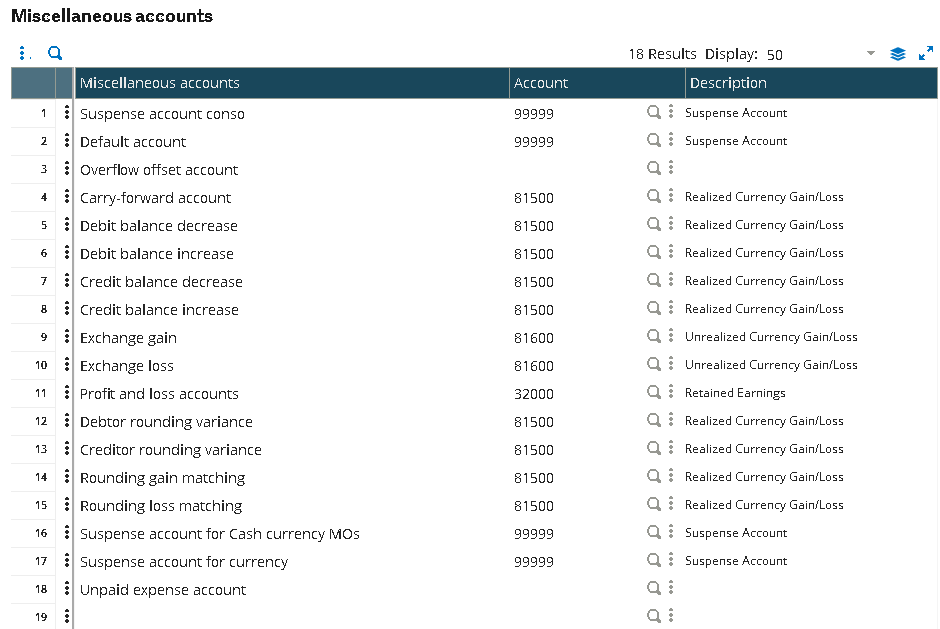

Extract from sample: 0304F-DataTableandRowManagement.

#Data table: select data table of the required section

Given the user selects the data table of section: "Miscellaneous accounts"

#Data table: set numbers of rows to display

Then the user sets rows to display to 50

Extract from sample: 0304F-DataTableandRowManagement.

#Data table: select the data table of the required section

Given the user selects the data table of section: "Miscellaneous accounts"

#Data table: verify the number of rows returned in the data table

Then the number of rows returned in the selected data table is "18 Results"

Extract from sample: 0304F-DataTableandRowManagement.

#Data table: select data table of the required section

Given the user selects the data table of section: "Miscellaneous accounts"

#Data table: select first row

When the user selects first row of the selected data table

#Data table: check a value exist in the selected row

Then the user checks if there is value "99999" in the selected row

Then the user clicks on the selected row

#Data table: select last row

When the user selects last row of the selected data table

Then the user clicks on the selected row

#Data table: select row by multiple criteria

When the user selects row by multiple criteria that has the text "Debit balance decrease" in column with header: "Miscellaneous accounts" and the text "81500" in column with header: "Account"

Then the user clicks on the selected row

#Data table: select row by multiple criteria and by X3 field name (ScreenCode_FieldName)

When the user selects row by multiple criteria that has the text "Credit balance decrease" in column with X3 field name: "COA2_ACCDES" and the text "81500" in column with X3 field name "COA2_ACCMIS"

Then the user clicks on the selected row

#Data table: select row using column index

When the user selects row that has the text "Exchange loss" in column with index: "CA2"

When the user clicks on the selected row

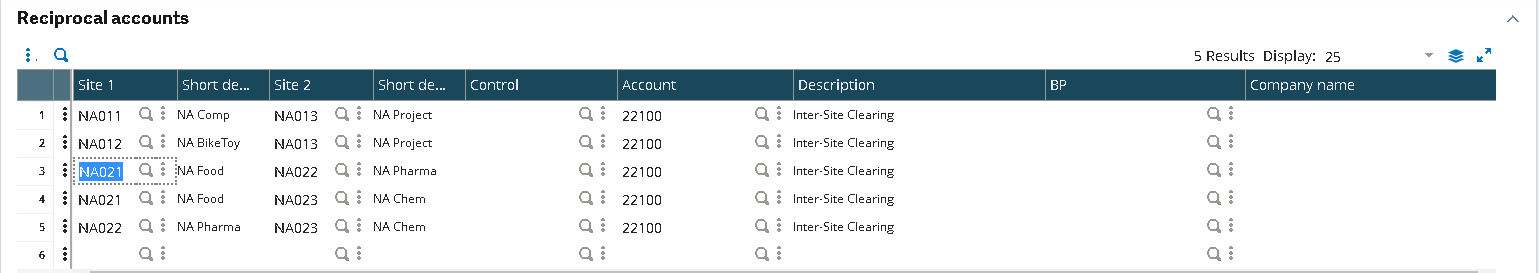

Extract from sample: 0304F-DataTableandRowManagement.

#Data table: select data table of the required section

Given the user selects the data table of section: "Reciprocal accounts"

#Data table: select editable row and write value

When the user selects editable row that has the text "NA011" in column with header: "Site 1"

Then the user edits text to "NA013" for cell with header: "Site 2" of selected row

#Data table: select editable row by X3 field name (ScreenCode_FieldName) and write value

When the user selects editable row that has the text "NA011" in column with X3 field name: "COA3_FCY1"

Then the user edits text to "NA012" for cell with X3 field name: "COA3_FCY2" of selected row

#Data table: select editable row by X3 field name (ScreenCode_FieldName) and write value and hits enter

When the user selects editable row that has the text "NA011" in column with X3 field name: "COA3_FCY1"

Then the user edits text to "NA013" for cell with X3 field name: "COA3_FCY2" of selected row and hits enter

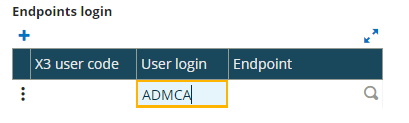

Extract from sample: 0304G-DataTableandCellManagement.

If you need to work with stored values, that uses memory. Please use the following sample: 0304P-DataTableandStoredValueManagement

#Data table: select the data table of field

Given the user selects the data table of field: "Endpoints login"

When the user clicks the "Append" button in the left top bar of the selected data table

#Data table: enter hard coded value in the selected cell

Then the user selects last editable cell with column header: "User login"

And the user adds the text "ADMCA" in selected cell

#Data table: enter value defined in parameter loginUserName in the selected cell

Then the user selects last editable cell with column header: "User login"

And the user adds the text "param:loginUserName" in selected cell

#Data table: enter hardcoded value in the selected cell and hit tab key

Then the user selects last editable cell with column header: "User login"

And the user adds the text "ADMCA" in selected cell and hits tab key

#Data table: enter value defined in parameter loginUserName in the selected cell and hit tab key

Then the user selects last editable cell with column header: "User login"

And the user adds the text "param:loginUserName" in selected cell and hits tab key

#Data table: enter hardcoded value in the selected cell and hit enter key

Then the user selects last editable cell with column header: "User login"

And the user adds the text "ADMCA" in selected cell and hits enter key

#Data table: enter value defined in parameter loginUserName in the selected cell and hit enter key

Then the user selects last editable cell with column header: "User login"

And the user adds the text "param:loginUserName" in selected cell and hits enter key

Extract from sample: 0304G-DataTableandCellManagement.

#Data table: select data table of the required section

Given the user selects the data table of section: "Variance accounts"

#Data table: select cell with row number and verifying value

When the user selects cell with column header: "Variance accounts" and row number: 2

Then the value of the selected cell is "Debit balance increase"

#Data table: select last cell and verifying value

When the user selects last cell with column header: "Description"

Then the value of the selected cell is ""

#Data table: select cell with required value

When the user selects cell with text "Credit balance increase" and column header: "Variance accounts"

Then the value of the selected cell is "Credit balance increase"

#Data table: select cell that match exact text

When the user selects cell that matches exact with the text: "Exchange gain" and column header: "Variance accounts"

Then the value of the selected cell is "Exchange gain"

#Data table: select cell that match exact text using X3 field name (ScreenCode_FieldName)

When the user selects cell that matches exact with the text: "Credit balance decrease" and X3 field name: "GAC2_CNVACCDES"

Then the value of the selected cell is "Credit balance decrease"

Extract from sample: 0304G-DataTableandCellManagement.

#Data table: select data table of the required section

Given the user selects the data table of section: "Variance accounts"

#Data table: select cell with required value

When the user selects cell with text: "Exchange loss" and column header: "Variance accounts"

#Data table: check the content of the cell matches the required value

Then the value of the selected cell is "Exchange loss"

#Data table: check the select cell is not empty

Then the selected cell is not empty

#Data table: check the select cell is not empty (other possibility)

Then the value of the selected cell not is ""

#Data table: select cell with row number and verifying value

When the user selects cell with column header: "Account" and row number: 2

#Data table: check the select cell is empty

Then the selected cell is empty

Extract from sample 0304G-DataTableandCellManagement

#Data table: Filter table column with contain operator

Then the user selects the data table in the popup

And the user selects search cell with header: "Code"

And the user selects the "Contain" operator in the search cell

And the user adds the next "NA" in selected cell and hits enter key

Extract from sample: 0304H-DataTableandFormsManagement.

#Data table: add value in a text cell / fixed part of the data table

Given the user selects the fixed data table of section: "Lines"

When the user selects last fixed cell with header: "Product"

Then the user adds the text "BMS012" in selected cell

#Data table: add value in a text cell / dynamic part of the data table

Given the user selects last editable cell with column header: "Ordered qty."

Then the user adds the text "4" in selected cell

Extract from sample: 0304H-DataTableandFormsManagement.

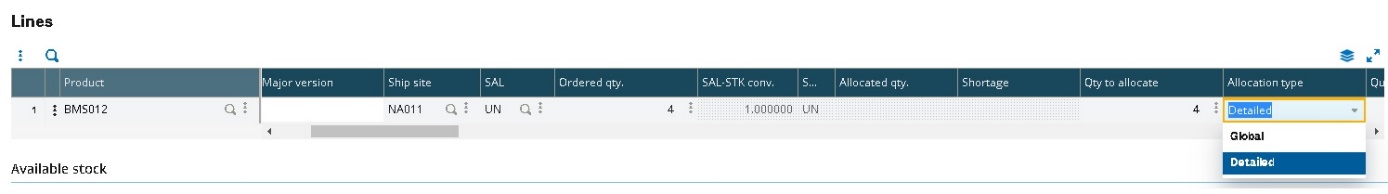

#Data table: set the expected value of the selected drop-down list and check the corresponding value selected

When the user selects last editable cell with column header "Allocation type"

Then the user selects the choice "Detailed" of the selected cell

And the user hits tab

When the user selects last editable cell with column header: "Allocation type"

Then the choice selected of the selected cell is "Detailed"

Extract from sample: 0304H-DataTableandFormsManagement

#Data table: select the required row

Given the user selects the data table of section: "Company selection"

Then the user sets rows to display to 50

When the user selects row that has the text "ATP2" in column with header: "Company"

#Data table: select and ticked the checkbox and verification the checkbox is ticked

Then the user selects cell with header: "" of selected row

And the user ticks the checkbox contained in the selected cell

And the value of the checkbox contained in the selected cell is ticked

#Data table: unticked the check box and verification the check box is not ticked

And the user unticks the checkbox contained in the selected cell

And the value of the checkbox contained in the selected cell is unticked

#Data table: other possibility to check the checkbox but the previous one will be preferred

When the user selects first row of the selected data table

Then the user selects cell with header: "" of selected row

And the user clicks on the selected cell

Extract from sample: 0304H-DataTableandFormsManagement.

#left Panel: open the picking left list and select the required document

Given the user clicks the "Open items" link on the left panel

When the user selects the data table of left panel

#Data table: tick the select all checkbox of the data table

And the user ticks the select all checkbox contained in the column header

#Data table: untick the select all checkbox of the data table

And the user unticks the select all checkbox contained in the column header

Extract from sample: 0304H-DataTableandFormsManagement.

#Data table: select the required data table row

Then the user selects the main fixed data table of the page

And the user selects row that has the text "B" in column with header: "Major version"

#Data table: select the cell of the selected row containing the icon field and click on it

And the user selects cell with header: "Minor versions" of selected row

And the user clicks on the icon contained in the selected cell

Extract from sample: 0304I-DataTableandDateManagement

#Data table: select main table to the page

Given the user selects the main data table of the page

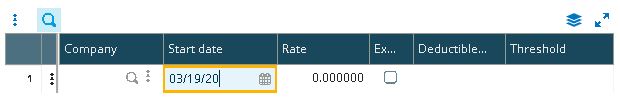

#Date cell: entering & verifying value - Today's date

When the user selects last editable cell with column header: "Start date"

Then the user enters todays date in the selected cell

And the user hits tab

When the user selects last editable cell with column header: "Start date"

Then the value of the selected cell is todays date

#Date cell: entering & verifying value - Tomorrow's date

When the user selects last editable cell with column header: "Start date"

Then the user enters a generated date using the value "T+1" in the selected cell

And the user hits tab

When the user selects last editable cell with column header "Start date"

Then the value of the selected cell is a generated date using value "T+1"

#Date cell: entering & verifying value - Yesterday's date

When the user selects last editable cell with column header: "Start date"

Then the user enters a generated date using the value "T-1" in the selected cell

And the user hits tab

When the user selects last editable cell with column header: "Start date"

Then the value of the selected cell is a generated date using value "T-1"

And the user waits 1 seconds

#Date cell: entering & verifying value - n day after today with n=3

When the user selects last editable cell with column header: "Start date"

Then the user enters a generated date using the value "T+3" in the selected cell

And the user hits tab

When the user selects last editable cell with column header: "Start date"

Then the value of the selected cell is a generated date using value "T+3"

#Date cell: entering & verifying value - n day before today with n=3

When the user selects last editable cell with column header: "Start date"

Then the user enters a generated date using the value "T-3" in the selected cell

And the user hits tab

When the user selects last editable cell with column header: "Start date"

Then the value of the selected cell is a generated date using value "T-3"

#Date cell: entering & verifying value - First day of the current month

When the user selects last editable cell with column header: "Start date"

Then the user enters the first day of the month in the selected cell

And the user hits tab

When the user selects last editable cell with column header: "Start date"

Then the value of the selected cell is the first day of the month

#Date cell: entering & verifying value - Last day of the current month

When the user selects last editable cell with column header: "Start date"

Then the user enters the last day of the month in the selected cell

And the user hits tab

When the user selects last editable cell with column header: "Start date"

Then the value of the selected cell is the last day of the month

#Date cell: entering & verifying value - n month after today with n=2

When the user selects last editable cell with column header: "Start date"

Then the user enters the first day of the month in the selected cell and adjusts by "M+2"

And the user hits tab

When the user selects last editable cell with column header: "Start date"

Then the value of the selected cell is the first day of the month adjusted by "M+2"

#Date cell: entering & verifying value - First day of the current year

Whenthe user selects last editable cell with column header: "Start date"

Thenthe user enters the first day of the year in the selected cell

And the user hits tab

When the user selects last editable cell with column header: "Start date"

Thenthe value of the selected cell is the first day of the year

#Date cell: entering & verifying value - Last day of the current year

When the user selects last editable cell with column header: "Start date"

Then the user enters the last day of the year in the selected cell

And the user hits tab

When the user selects last editable cell with column header: "Start date"

Then the value of the selected cell is the last day of the year

#Date cell: entering & verifying value - n years after today with n=2

When the user selects last editable cell with column header: "Start date"

Then the user enters a generated date using the value "Y+2" in the selected cell

And the user hits tab

When the user selects last editable cell with column header: "Start date"

Then the value of the selected cell is a generated date using value "Y+2"

#Date cell: entering & verifying value - n years before today with n=2

When the user selects last editable cell with column header: "Start date"

Then the user enters a generated date using the value "Y-2" in the selected cell

And the user hits tab

When the user selects last editable cell with column header: "Start date"

Then the value of the selected cell is a generated date using value "Y-2"

#Date cell: entering & verifying value - First day of the next month

When the user selects last editable cell with column header "Start date"

Then the user enters the first day of the month in the selected cell and adjusts by "M+1"

And the user hits tab

When the user selects last editable cell with column header: "Start date"

Then the value of the selected cell is the first day of the month adjusted by "M+1"

#Date cell: entering & verifying value - Last day of the next month

When the user selects last editable cell with column header: "Start date"

Then the user enters the last day of the month in the selected cell and adjusts by "M+1"

And the user hits tab

When the user selects last editable cell with column header: "Start date"

Then the value of the selected cell is the last day of the month adjusted by "M+1"

#Date cell: entering & verifying value - First day of the next year

When the user selects last editable cell with column header: "Start date"

Then the user enters the first day of the year in the selected cell and adjusts by "Y+1"

And the user hits tab

When the user selects last editable cell with column header: "Start date"

Then the value of the selected cell is the first day of the year adjusted by "Y+1"

#Date cell: entering & verifying value - Last day of the previous year

When the user selects last editable cell with column header: "Start date"

Then the user enters the last day of the year in the selected cell and adjusts by "Y+1"

And the user hits tab

When the user selects last editable cell with column header: "Start date"

Then the value of the selected cell is the last day of the year adjusted by "Y+1"

#Date cell: 1st Monday from Today

#Value can be 1st 2nd 3rd 4th, Monday Tuesday, Wednesday until Sunday

When the user selects last editable cell with column header: "Start date"

Then the user enters the "1st Monday" from today in the selected cell

And the user hits tab

When the user selects last editable cell with column header: "Start date"

Then the value of the selected cell is the "1st Monday" from today

#Date cell: 3rd Tuesday + 4 days from Today

#Value can be 1st 2nd 3rd 4th, Monday Tuesday, Wednesday until Sunday

When the user selects last editable cell with column header: "Start date"

Then the user enters the "3rd Tuesday +4" from today in the selected cell

And the user hits tab

When the user selects last editable cell with column header: "Start date"

Then the value of the selected cell is the "3rd Tuesday +4" from today

Extract from sample: 0304I-DataTableandDateManagement.

#Date cell: returning current month & verifying value

When the user selects last editable cell with column header: "Months"

Then the user enters the month in the selected cell

And the user hits tab

When the user selects last editable cell with column header: "Months"

Then the value of the selected cell is the current month

#Date cell: returning current year & verifying value

When the user selects last editable cell with column header: "Year"

Then the user enters the year in the selected cell

And the user hits tab

When the user selects last editable cell with column header: "Year"

Then the value of the selected cell is the current year

#Date cell: returning current tax year & verifying value

When the user selects last editable cell with column header: "Year"

Then the user enters the current tax year starting "2020" in the selected cell

And the user hits tab

When the user selects last editable cell with column header: "Year"

Then the value of the selected cell is the current tax year starting "2020"

#Date cell: returning current day & verifying value

When the user selects last editable cell with column header: "Day"

Then the user enters the day in the selected cell

And the user hits tab

When the user selects last editable cell with column header: "Day"

Then the value of the selected cell is the current day

#Date cell: returning current week number & verifying value

When the user selects last editable cell with column header "Week"

Then the user enters the week number in the selected cell

And the user hits tab

When the user selects last editable cell with column header: "Week"

Then the value of the selected cell is the current week number

Extract from sample: 0304I-DataTableandDateManagement

#Data table: select main table to the page

Given the user selects the main data table of the page

#Date cell: entering & verifying value - Today's date

Given the user selects last editable cell with column header: "Begin"

When the user enters a generated date using the value "T.M.Y" in the selected cell

And the user hits tab

When the user selects last editable cell with column header: "Begin"

Then the value of the selected cell is a generated date using value "T.M.Y"

#Date cell: entering & verifying value - Last day of current month of next year

Given the user selects last editable cell with column header: "Begin"

When the user enters a generated date using the value "L.M.(Y+1)" in the selected cell

And the user hits tab

When the user selects last editable cell with column header "Begin"

Then the value of the selected cell is a generated date using value "L.M.(Y+1)"

Extract from sample: 0304I-DataTableandDateManagement

#Data table: select main table to the page

Given the user selects the main data table of the page

#Date cell: entering & verifying value - Today's date

Given the user selects last editable cell with column header: "Start date"

When the user enters a generated date using the value "M/T/Y" in the selected cell

And the user hits tab

When the user selects last editable cell with column header: "Start date"

Then the value of the selected cell is a generated date using value "M/T/Y"

#Date cell: entering & verifying value - Last day of current month of next year

Given the user selects last editable cell with column header: "Start date"

When the user enters a generated date using the value "M/L/(Y+1)" in the selected cell

And the user hits tab

When the user selects last editable cell with column header "Start date"

Then the value of the selected cell is a generated date using value "M/L/(Y+1)"

Extract from sample: 0304I-DataTableandDateManagement

#Data table: select main table to the page

Given the user selects the main data table of the page

#Date cell: entering & verifying value - Today's date

Given the user selects last editable cell with column header: "Date début"

When the user enters a generated date using the value "T/M/Y" in the selected cell

And the user hits tab

When the user selects last editable cell with column header: "Date début"

Then the value of the selected cell is a generated date using value "T/M/Y"

#Date cell: entering & verifying value - Last day of current month of next year

Given the user selects last editable cell with column header: "Date début"

When the user enters a generated date using the value "L/M/(Y+1)" in the selected cell

And the user hits tab

When the user selects last editable cell with column header "Date début"

Then the value of the selected cell is a generated date using value "L/M/(Y+1)"

Extract from sample: 0304I-DataTableandDateManagement

#Data table: select main table to the page

Given the user selects the main data table of the page

#Date cell: entering & verifying value - Today's date

Given the user selects last editable cell with column header: "Data od"

When the user enters a generated date using the value "(Y)-(M)-(T)" in the selected cell

And the user hits tab

When the user selects last editable cell with column header: "Data od"

Then the value of the selected cell is a generated date using value "(Y)-(M)-(T)"

#Date cell: entering & verifying value - Last day of current month of next year

Given the user selects last editable cell with column header: "Date od"

When the user enters a generated date using the value "(Y+1)-(M)-(L)" in the selected cell

And the user hits tab

When the user selects last editable cell with column header "Data od"

Then the value of the selected cell is a generated date using value "(Y+1)-(M)-(L)"

Extract from sample: 0304I-DataTableandDateManagement

The step definition allows to control a date format different from the current user locale date format for the current language. The step definitions ignores the time information or any information after the date.

#Data table: select a specific row and control the none local date

When the user selects the main data table of the page

And the user selects row that has the text "ACCENTRY01" in column with header: "Name"

And the user selects cell with header: "End date/time GMT" of selected row

Then the value of the selected cell is a generated none local date using value "Y/M/T"

Extract from sample: 0304J-DataTableRowActionManagement.

#Data table: insert a line using toolbox action of the selected row

Given the user selects the main fixed data table of the page

When the user selects row that has the text "Discount2" in column with header: "Description"

#Row action: insert a new line

Then the user opens "Insert" function on toolbox of the selected row

#Row action: delete the selected line

Then the user opens "Delete" function on toolbox of the selected row

Extract from sample: 0304J-DataTableRowActionManagement.

#Data table: select the required row in the data table

Given the user selects the fixed data table of section: "List of values"

When the user selects row that has the text "100" in column with header: "Code"

Then the user highlights the selected row

Extract from sample: 0304K-DataTableandKeyCommand.

#Data table: create a new line

Given the user selects the main fixed data table of the page

#Data table: enter a value and hit tab key command

When the user selects last fixed cell with header: "Code"

Then the user adds the text "[email protected]" in selected cell

And the user hits tab key in the selected cell

 #Data table: enter a value and hit enter key command

When the user selects last fixed cell with header "Code"

Then the user adds the text "[email protected]" in selected cell

And the user hits enter key in the selected cell

#Data table: enter a value and hit escape key command

When the user selects last fixed cell with header: "Code"

Then the user adds the text "[email protected]" in selected cell

And the user hits escape key in the selected cell

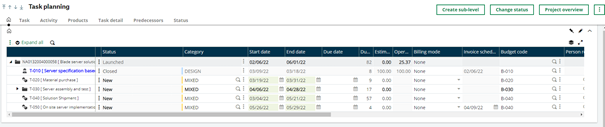

Extract from sample: 0304L-DataTableHierarchicalCellManagement.

#Data table: select the main data table of the page

And the user selects the data table with X3 field name: "PJMTAS0_ARRAY_NBLIG"

The first line of the hierarchical data table contains a document reference (dynamic); it is therefore more appropriate to select the line dynamically using a stored value.

#Hierarchical cell: select the row containing the project reference and check the status of the current line

Given the user selects row that has the hierarchical cell with text: "ATP212109000072 [ ATP21 - PJM001 ]"

When the user selects cell with header: "Status" of selected row

Then the value of the selected cell is "New"

#Hierarchical cell: select the required hierarchical cell containing the project reference

Given the user selects hierarchical cell with text: "ATP212109000072 [ ATP21 - PJM001 ]"

#Hierarchical cell: expand the hierarchical cell

When the user expands the hierarchical list of the selected cell

#Hierarchical cell: select the required hierarchical cell

Given the user selects hierarchical cell with text: "T-030 [ Server assembly and test ]"

And the user expands the hierarchical list of the selected cell

And the user clicks on the selected cell

#Hierarchical cell: select the row whose the hierarchical cell has the required value and check the value of a given cell on the same row

Given the user selects row that has the hierarchical cell with text: "T-031 [ Server assembly ]"

And the user selects cell with header "Status" of selected row

And the value of the selected cell is "New"

#Hierarchical cell: collapse the hierarchical cell

Given the user selects hierarchical cell with text :"T-030 [ Server assembly and test ]"

Then the user collapses the hierarchical list of the selected cell

Extract from sample: 0304L-DataTableHierarchicalCellManagement.

#Data table: select the main data table of the page

And the user selects the data table with x3 field name: "PJMTAS0_ARRAY_NBLIG"

#Data table: expand the hierarchical data table

When the user clicks the "Expand all" button in the left top bar of the selected data table

#Data table: collapse the hierarchical data table

When the user clicks the "Collapse all" button in the left top bar of the selected data table

Extract from sample: 0304M-DataTableandDataSelectionManagement.

#Data selection: method 1

Given the user clicks the "Selection" button on the "Unit" text field

When the user selects the data table in the popup

Then the user clicks on the cell that matches exact with the text "Hour" in cell with header: "Description"

#Data selection: method 2

Given the user clicks the "Selection" button on the "Unit" text field

When the user selects the data table in the popup

Then the user clicks on the cell that has the text "Day 4H" in cell with header: "Description"

#Data selection: method 3

Given the user clicks the "Selection" button on the "Unit" text field

When the user selects the data table in the popup

Then the user selects search cell with header: "Unit"

And the user adds the text "J8H" in selected cell and hits enter key

And the user selects cell with column header: "Unit" and row number: 1

And the user clicks on the selected cell

Extract from sample: 0304N-DataTableandCellActionManagement.

#Cell action: use the cell's quick selection to select the product

Given the user selects last fixed cell with header: "Product"

When the user clicks the "Selection" action button of the selected cell

Then the user selects the data table in the popup

And the user selects search cell with header: "Product"

And the user adds the text "BMS001" in selected cell and hits enter key

And the user selects cell with column header: "Product" and row number: 1

And the user clicks on the selected cell

Extract from sample: 0304N-DataTableandCellActionManagement.

#Data table: select the fixed part of the data table

Then the user selects the fixed data table of section: "Lines"

#Cell action: use the Products option to Jump to the Product function

Given the user selects last fixed cell with header: "Product"

Then the user adds the text "BMS001" in selected cell

When the user clicks the "Products" option of the actions panel for the selected cell

Then the "Product" screen is displayed

Extract from sample: 0304O-ScrollingDataTableManagement.

#Data table: Scrolling data table selection by X3 field name

Given the user selects the scrolling data table for x3 field name: "WK4ALL1_ARRAY_NBLIG"

When the user selects cell that may not be visible with column header: "Order no." and row number: 1

Then the value of the selected cell is "SONATP210001"

Extract from sample: 0304P-DataTableTopBarActionManagement.

#Data table: Execute the Excel export action in the left top bar of the selected data table

And the user selects the data table of section: "Details"

When the user clicks the "Excel export" action in the left top bar of the selected data table

Extract from sample: 0304P-DataTableTopBarActionManagement.

#Data table: Select the data table of a field and click the Append button in the left top bar

Given the user selects the data table of field: "Endpoints login"

When the user clicks the "Append" button in the left top bar of the selected data table

#Enter the required data in the data table

And the user selects last editable cell with column header: "Endpoint"

And the user clicks the "Selection" action button of the selected cell

And the user selects the data table in the popup

And the user selects cell that matches exact with the text: "Local development" and column header: "Description"

And the user clicks on the selected cell

Extract from sample: 0304P-DataTableTopBarActionManagement.

#Data table: Select the main data table

And the user selects the main data table of the page

#Data table: Go to the next page

When the user clicks the "Next" button in the right top bar of the selected data table

#Data table: Go to the previous page

When the user clicks the "Previous" button in the right top bar of the selected data table

#Data table: Go to the last page

When the user clicks the "Last" button in the right top bar of the selected data table

#Data table: Go to the first page

When the user clicks the "First" button in the right top bar of the selected data table

#Data table: Go to page 3

When the user clicks the "3" button in the right top bar of the selected data table

#Data table: Refresh the data table

When the user clicks the "Refresh" button in the right top bar of the selected data table

#Data table: Maximize the data table

When the user clicks the "Maximize" button in the right top bar of the selected data table

#Data table: Minimize the data table

When the user clicks the "Minimize" button in the right top bar of the selected data table

Extract from sample: 0304P-DataTableTopBarActionManagement.

#Data table: Select the data table

And the user selects the data table of section: "Details"

#Data table: Go to page 2

When the user clicks the "2" button in the right top bar of the selected data table

#Data table: Go to page 1

When the user clicks the "1" button in the right top bar of the selected data table

#Data table: Maximize the data table

When the user clicks the "Maximize" button in the right top bar of the selected data table

#Data table: Minimize the data table

When the user clicks the "Minimize" button in the right top bar of the selected data table

Extract from the 0304Q-DataTableCellColorManagement sample.

#Control the text color of the cell is red

And the user selects row that has the text "AWARN" in column with header: "Code"

And the user selects cell with header: "Description" of selected row

And the color of the text in the selected cell is "Red"

And the color of the text in the selected cell is "red"

And the color of the text in the selected cell is "#FF0000"

And the color of the text in the selected cell is "#ff0000"

Extract from the 0304Q-DataTableCellColorManagement sample.

#Control the background color of the cell is blue

And the user selects row that has the text "CPYFLD" in column with header: "Code"

And the user selects cell with header: "Description" of selected row

And the color of the background in the selected cell is "Blue"

And the color of the background in the selected cell is "#78A7F5"
