Application cluster architecture configuration

A standard for identifying servers, printers, and other resources in a network, which originated in the Unix community. A UNC path uses double slashes or backslashes to precede the name of the computer. The path (disk and directories) within the computer is separated by a single slash or backslash.

During configuration, you can set up the application cluster mode and define the path to the application server for each runtime.

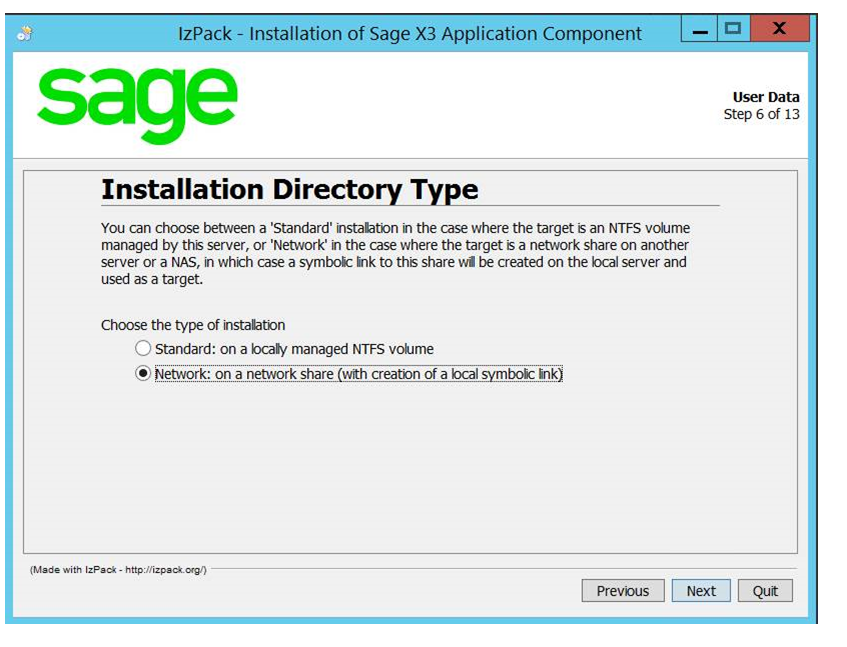

  1. Configure the shared folders for the application server during its installation. Select Network and click Next.

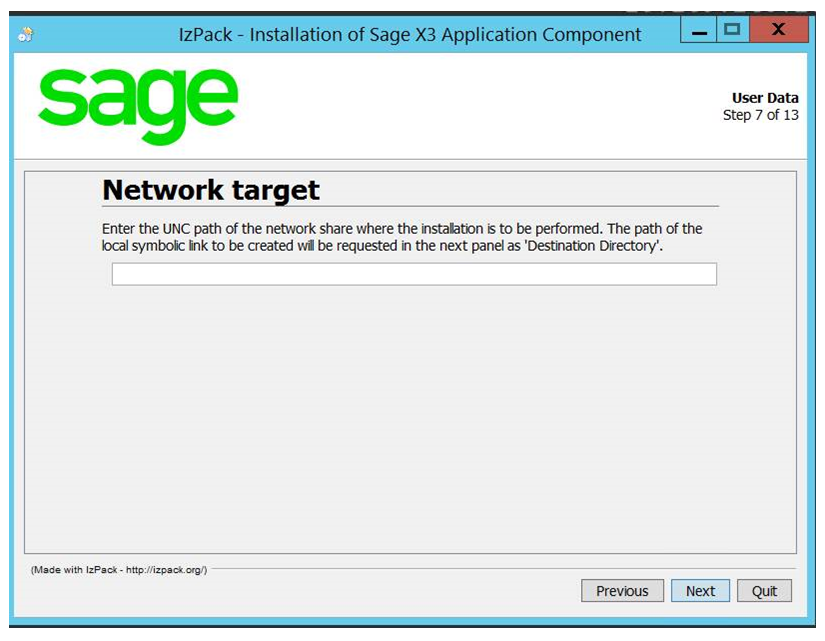

  2. Enter the target's path and click Next.

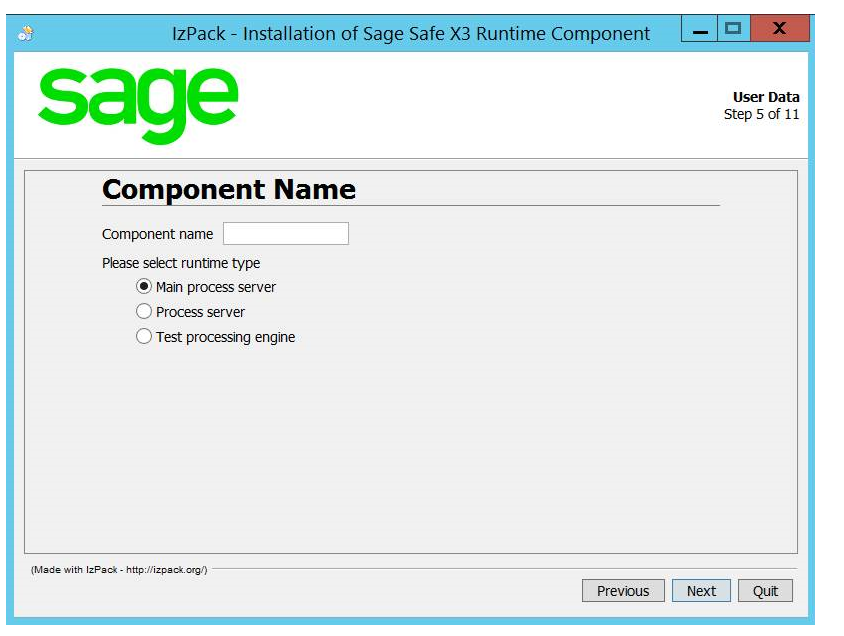

  3. Deploy each runtime as main during its installation. Enter the Component name and select Main process server. Click Next.

  4. In the console, the UNC network path field given during the application server installation is displayed. You can configure the main runtimes there.
