QR codes on fiscal documents
As of January 1, 2021, invoices and other fiscal documents need to include a QR code. When generating the electronic signature, the QR code is generated at the same time. The data is stored in a new table.
Fiscal documents that require the QR code include, but are not limited to:
-
Invoices, credit notes, debit notes, simplified invoices and invoice receipts
-
Transport notes, packing slips, asset transports, loan packing slips (consignment), and return notes
-
Orders, quotes, consignment invoices, and proforma invoices
-
Receipts and cash VAT receipts
Data storage
The PORQRC - Portuguese QR-data table stores the data needed to generate the QR code string. This table also stores the image of the QR code (IMGQRC) and the string (STRQRC) used to generate the image.
The data for all documents in this table is exported to SAF-T.
|
Column |
Type |
Length |
Long title |
Mandatory |
|---|---|---|---|---|
|
DOCTYP |
A |
5 |
Entry type |
No |
|
DOCNUM |
VCR |
|
Document number |
No |
|
QRC_A |
A |
9 |
VAT number |
Yes |
|
QRC_B |
A |
30 |
Customer VAT |
Yes |
|
QRC_C |
A |
12 |
Customer country |
Yes |
|
QRC_D |
A |
2 |
Document type |
Yes |
|
QRC_E |
A |
1 |
Document status |
Yes |
|
QRC_F |
A |
8 |
Document date |
Yes |
|
QRC_G |
A |
60 |
Document ID |
Yes |
|
QRC_H |
A |
70 |
ATCUD |
Yes |
|
QRC_I1 |
A |
5 |
VAT region regime PT |
Yes |
|
QRC_I2 |
A |
16 |
VAT exempt tax base |
No |
|
QRC_I3 |
A |
16 |
VAT tax base at reduced rate |
No |
|
QRC_I4 |
A |
16 |
Total VAT at reduced rate |
No |
|
QRC_I5 |
A |
16 |
VAT tax base at intermediate rate |
No |
|
QRC_I6 |
A |
16 |
Total VAT at intermediate rate |
No |
|
QRC_I7 |
A |
16 |
VAT tax base at normal rate |
No |
|
QRC_I8 |
A |
16 |
Total VAT at normal rate |
No |
|
QRC_J1 |
A |
16 |
VAT region regime PT-AC |
No |
|
QRC_J2 |
A |
16 |
VAT exempt tax base |
No |
|
QRC_J3 |
A |
16 |
VAT tax base at reduced rate |
No |
|
QRC_J4 |
A |
16 |
Total VAT at reduced rate |
No |
|
QRC_J5 |
A |
16 |
VAT tax base at intermediate rate |
No |
|
QRC_J6 |
A |
16 |
Total VAT at intermediate rate |
No |
|
QRC_J7 |
A |
16 |
VAT tax base at normal rate |
No |
|
QRC_J8 |
A |
16 |
Total VAT at normal rate |
No |
|
QRC_K1 |
A |
5 |
VAT region regime PT-MA |
No |
|
QRC_K2 |
A |
16 |
VAT exempt tax base |
No |
|
QRC_K3 |
A |
16 |
VAT tax base at reduced rate |
No |
|
QRC_K4 |
A |
16 |
Total VAT at reduced rate |
No |
|
QRC_K5 |
A |
16 |
VAT tax base at intermediate rate |
No |
|
QRC_K6 |
A |
16 |
Total VAT at intermediate rate |
No |
|
QRC_K7 |
A |
16 |
VAT tax base at normal rate |
No |
|
QRC_K8 |
A |
16 |
Total VAT at normal rate |
No |
|
QRC_L |
A |
16 |
Not subject to VAT |
No |
|
QRC_M |
A |
16 |
Stamp tax |
No |
|
QRC_N |
A |
16 |
Total tax |
Yes |
|
QRC_O |
A |
16 |
Document total |
Yes |
|
QRC_P |
A |
16 |
Withholding tax |
No |
|
QRC_Q |
A |
4 |
Hash code |
Yes |
|
QRC_R |
A |
4 |
Certificate number |
Yes |
|
CREDATTIM |
ADATIM |
|
Date time |
No |
|
UPDDATTIM |
ADATIM |
|
Date time |
No |
|
AUUID |
AUUID |
|
Single identifier |
No |
|
CREUSR |
AUS |
|
User |
No |
|
UPDUSR |
AUS |
|
User |
No |
|
STRQRC |
A |
250 |
QR Text |
No |
|
STAQRC |
M |
4 |
QR image status |
No |
|
IMGQRC |
ABB |
|
QR image |
No |
The index for this table is: DOCTYP+DOCNUM
The information for each field is as follows:
|
Code |
Description |
Instructions |
SAGE X3 Field |
|---|---|---|---|
|
QRC_A |
Company VAT number |
Enter the issuer's VAT without the country prefix. |
<CompanyID> tag in SAFT |
|
QRC_B |
Customer VAT |
Enter the customer's VAT. When issuing a document, the final consumer is populated with 999999990. |
Using the same rule than <CustomerTaxID> in SAFT |
|
QRC_C |
Customer Country |
Enter the same information used for SAF-T. |
<Country> tag in SAFT |
|
QRC_D |
Document type |
SAF-T document type. |
<InvoiceType>/<MovementType>/<Worktype>/<Paymenttype> tag in SAFT |
|
QRC_E |
Document status |
SAF-T document status. |
<InvoiceStatus>/<MovementStatus>/<WorkStatus>/<PaymentStatus> tag in SAFT |
|
QRC_F |
Document date |
Use this date YYYYMMDD format. |
<InvoiceDate>/<MovementDate>/<WorkDate>/<PaymentDate> tag in SAFT |
|
QRC_G |
Unique document identification |
The document type plus the Sage X3 number doc. |
<InvoiceNo>/<DocumentNumber>/<DocumentNumber>/<PaymentRefNo> tag in SAFT |
|
QRC_H |
ATCUD |
0 |
0 |
|
QRC_I1 |
VAT region regime |
Enter according to the technical notes in the TaxCountryRegion field of SAFT (PT). For a document with no VAT rate, which should appear in table 4.2, 4.3 or 4.4 of the SAF-T (PT), enter 0 (I1:0). |
<TaxCountryRegion> in SAFT |
|
QRC_I2 |
VAT-exempt tax base |
Total value of the tax base exempt from VAT (including taxable transactions under Stamp tax, whether or not they are exempt from Stamp tax). Format with 2 decimal places and use a period (.) for the decimal separator with no thousands separator. |
<CreditAmount> or <debitamount> tag when <TaxPercentage>=0 and <TaxCountryRegion>PT</TaxCountryRegion> and <TaxType>=IVA |
|
QRC_I3 |
VAT tax base at reduced rate |
Total value of the tax base subject to the reduced VAT rate. Format with 2 decimal places and use a period (.) for the decimal separator with no thousands separator. |
<CreditAmount> or <debitamount> tag when <TaxCountryRegion>PT</TaxCountryRegion> and <TaxCode>RED</TaxCode> and <TaxType>=IVA |
|
QRC_I4 |
Total VAT at reduced rate |
Total value of VAT at the reduced rate in the document. Format with 2 decimal places and use a period (.) for the decimal separator with no thousands separator. |
( <CreditAmount> or <debitamount>* <TaxPercentage>) tag when <TaxCountryRegion>PT</TaxCountryRegion> and <TaxCode>RED</TaxCode>and <TaxType>=IVA |
|
QRC_I5 |
VAT tax base at the intermediate rate |
Total value of the tax base subject to the intermediate VAT rate. Format with 2 decimal places and use a period (.) for the decimal separator with no thousands separator. |
<CreditAmount> or <debitamount> tag when <TaxCountryRegion>PT</TaxCountryRegion> and <TaxCode>INT</TaxCode> and <TaxType>=IVA |
|
QRC_I6 |
Total VAT at intermediate rate |
Total value of VAT at the intermediate rate in the document. Format with 2 decimal places and use a period (.) for the decimal separator with no thousands separator. |
( <CreditAmount> or <debitamount>* <TaxPercentage>) tag when <TaxCountryRegion>PT</TaxCountryRegion> and <TaxCode>INT</TaxCode> and <TaxType>=IVA |
|
QRC_I7 |
VAT tax base at the normal rate |
Total value of the tax base subject to the normal VAT rate. Format with 2 decimal places and use a period (.) for the decimal separator with no thousands separator. |
<CreditAmount> or <debitamount> tag when <TaxCountryRegion>PT</TaxCountryRegion> and <TaxCode>NOR</TaxCode> and <TaxType>=IVA |
|
QRC_I8 |
Total VAT at normal rate |
Total value of VAT at the normal rate in the document. Format with 2 decimal places and use a period (.) for the decimal separator with no thousands separator. |
( <CreditAmount> or <debitamount>* <TaxPercentage>) tag when <TaxCountryRegion>PT</TaxCountryRegion> and <TaxCode>NOR</TaxCode> and <TaxType>=IVA |
|
QRC_J1 |
VAT region regime |
Enter according to the technical notes in the TaxCountryRegion field of SAFT (PT). |
<TaxCountryRegion> in SAFT |
|
QRC_J2 |
VAT-exempt tax base |
Total value of the tax base exempt from VAT (including taxable transactions under Stamp tax, whether or not they are exempt from Stamp tax). Format with 2 decimal places and use a period (.) for the decimal separator with no thousands separator. |
<CreditAmount> or <debitamount> tag when <TaxPercentage>=0 and <TaxCountryRegion>PT-AC</TaxCountryRegion> and <TaxType>=IVA |
|
QRC_J3 |
VAT tax base at reduced rate |
Total value of the tax base subject to the reduced VAT rate. Format with 2 decimal places and use a . for the decimal separator and no thousands separator. |
<CreditAmount> or <debitamount> tag when <TaxCountryRegion>PT-AC</TaxCountryRegion> and <TaxCode>RED</TaxCode> and <TaxType>=IVA |
|
QRC_J4 |
Total VAT at reduced rate |
Total value of VAT at the reduced rate in the document. Format with 2 decimal places and use a period (.) for the decimal separator with no thousands separator. |
( <CreditAmount> or <debitamount>* <TaxPercentage>) tag when <TaxCountryRegion>PT-AC</TaxCountryRegion> and <TaxCode>RED</TaxCode> and <TaxType>=IVA |
|
QRC_J5 |
VAT tax base at the intermediate rate |
Total value of the tax base subject to the intermediate VAT rate. Format with 2 decimal places and use a period (.) for the decimal separator with no thousands separator. |
<CreditAmount> or <debitamount> tag when <TaxCountryRegion>PT-AC</TaxCountryRegion> and <TaxCode>INT</TaxCode> and <TaxType>=IVA |
|
QRC_J6 |
Total VAT at intermediate rate |
Total value of VAT at the intermediate rate in the document. Format with 2 decimal places and use a period (.) for the decimal separator with no thousands separator. |
( <CreditAmount> or <debitamount>* <TaxPercentage>) tag when <TaxCountryRegion>PT<-AC/TaxCountryRegion> and <TaxCode>INT</TaxCode> and <TaxType>=IVA |
|
QRC_J7 |
VAT tax base at the normal rate |
Total value of the tax base subject to the normal VAT rate. Format with 2 decimal places and use a period (.) for the decimal separator with no thousands separator. |
<CreditAmount> or <debitamount> tag when <TaxCountryRegion>PT-AC</TaxCountryRegion> and <TaxCode>NOR</TaxCode> and <TaxType>=IVA |
|
QRC_J8 |
Total VAT at normal rate |
Total value of VAT at the normal rate in the document. Format with 2 decimal places and use a period (.) for the decimal separator with no thousands separator. |
( <CreditAmount> or <debitamount>* <TaxPercentage>) tag when <TaxCountryRegion>PT-AC</TaxCountryRegion> and <TaxCode>NOR</TaxCode> and <TaxType>=IVA |
|
QRC_K1 |
VAT region regime |
Enter according to the technical notes in the TaxCountryRegion field of SAFT (PT). |
<TaxCountryRegion> in SAFT |
|
QRC_K2 |
VAT-exempt tax base |
Total value of the tax base exempt from VAT (including taxable transactions under Stamp tax, whether or not they are exempt from Stamp tax). Format with 2 decimal places and use a period (.) for the decimal separator with no thousands separator. |
<CreditAmount> or <debitamount> tag when <TaxPercentage>=0 and <TaxCountryRegion>PT-MA</TaxCountryRegion> and <TaxType>=IVA |
|
QRC_K3 |
VAT tax base at reduced rate |
Total value of the tax base subject to the reduced VAT rate. Format with 2 decimal places and use a period (.) for the decimal separator with no thousands separator. |
<CreditAmount> or <debitamount> tag when <TaxCountryRegion>PT-MA</TaxCountryRegion> and <TaxCode>RED</TaxCode> and <TaxType>=IVA |
|
QRC_K4 |
Total VAT at reduced rate |
Total value of VAT at the reduced rate in the document. Format with 2 decimal places and use a period (.) for the decimal separator with no thousands separator. |
( <CreditAmount> or <debitamount>* <TaxPercentage>) tag when <TaxCountryRegion>PT-MA</TaxCountryRegion> and <TaxCode>RED</TaxCode> and <TaxType>=IVA |
|
QRC_K5 |
VAT tax base at the intermediate rate |
Total value of the tax base subject to the intermediate VAT rate. Format with 2 decimal places and use a period (.) for the decimal separator with no thousands separator. |
<CreditAmount> or <debitamount> tag when <TaxCountryRegion>PT-MA</TaxCountryRegion> and <TaxCode>INT</TaxCode> and <TaxType>=IVA |
|
QRC_K6 |
Total VAT at intermediate rate |
Total value of VAT at the intermediate rate in the document. Format with 2 decimal places and use a period (.) for the decimal separator with no thousands separator. |
( <CreditAmount> or <debitamount>* <TaxPercentage>) tag when <TaxCountryRegion>PT-MA</TaxCountryRegion> and <TaxCode>INT</TaxCode> and <TaxType>=IVA |
|
QRC_K7 |
VAT tax base at the normal rate |
Total value of the tax base subject to the normal VAT rate. Format with 2 decimal places and use a period (.) for the decimal separator with no thousands separator. |
<CreditAmount> or <debitamount> tag when <TaxCountryRegion>PT-MA</TaxCountryRegion> and <TaxCode>NOR</TaxCode> and <TaxType>=IVA |
|
QRC_K8 |
Total VAT at normal rate |
Total value of VAT at the normal rate in the document. Format with 2 decimal places and use a period (.) for the decimal separator with no thousands separator. |
( <CreditAmount> or <debitamount>* <TaxPercentage>) tag when <TaxCountryRegion>PT-MA</TaxCountryRegion> and <TaxCode>NOR</TaxCode> and <TaxType>=IVA |
|
QRC_L |
Not subject / non-taxable in VAT |
Total value related to non-subject / non-taxable transactions in VAT. Format with 2 decimal places and use a period (.) for the decimal separator with no thousands separator. |
<CreditAmount> or <debitamount> tag when <TaxType>=NS |
|
QRC_M |
Stamp tax |
Total value of Stamp tax in the document. Format with 2 decimal places and use a period (.) for the decimal separator with no thousands separator. |
<CreditAmount> or <debitamount> tag when <TaxType>=IS |
|
QRC_N |
Total taxes |
Total value of VAT and Stamp Tax - SAF-T (PT) TaxPayable field. Format with 2 decimal places and use a period (.) for the decimal separator with no thousands separator. |
<TaxPayable> tag in SAFT |
|
QRC_O |
Total document |
Total document value: GrossTotal field of SAFT (PT). Format with 2 decimal places and use a period (.) for the decimal separator with no thousands separator. |
< GrossTotal> tag in SAFT |
|
QRC_P |
Withholding tax |
Total withholding tax amount: SAF-T (PT) WithholdingTaxAmount field. Format with 2 decimal places and use a period (.) for the decimal separator with no thousands separator. |
<WithholdingTaxAmount> tag in SAFT |
|
QRC_Q |
Hash code |
The 4 digits used in printing. |
The 4 numbers from HASH used in the printout |
|
QRC_R |
certificate number |
|
<SoftwareCertificateNumber> tag in SAFT or |
Reports
A QR Code was added in the SBONFACP - Customer invoice report.
You need to add the PORQRC table to reports. Include the following links depending on the report in question.
The DOCNUM and DOCTYP fields in the PORQRC table connect the table and fields listed below. The table join needs to be a left join between the original table and the new table.
-
ORDERS - SORDER to SOHNUM + SOHTYP
-
QUOTES - SQUOTE to SQHNUM + SQHTYP
-
PROFORMA/INVOICE - SINVOICE to NUM + SIVTYP
-
DELIVERIES - SDELIVERY to SDHNUM + SDHTYP
-
CUSTOMER RETURNS- SRETURN to SRHNUM + SRHTYP
-
STOCK DOCUMENTS - SCHGH to VCRNUM + SGHTYP
-
SUPPLIER RETURNS - PRETURN to PNHNUM + PNHTYP
-
TRANSPORT NOTE - TRANNOTEH to TNHNUM + TNHTYP
-
PAYMENTS - PAYMENTH to NUM + PAYTYP
-
AUTO INVOICE - PINVOICE to NUM + PIVTYP
Generate and add the QR image
Generate the QR code image, IMGQRC, using the QR code string stored in STRQRC field.
The QR code must comply with the following specifications:
-
Error Recovery Rate (ECC): M
-
Type: Byte
-
Points per module (Size): 2
-
Version: v = 9 (minimum value)
-
Image dimensions: minimum 30 x 30 mm
There is no font defined for QR code generation.

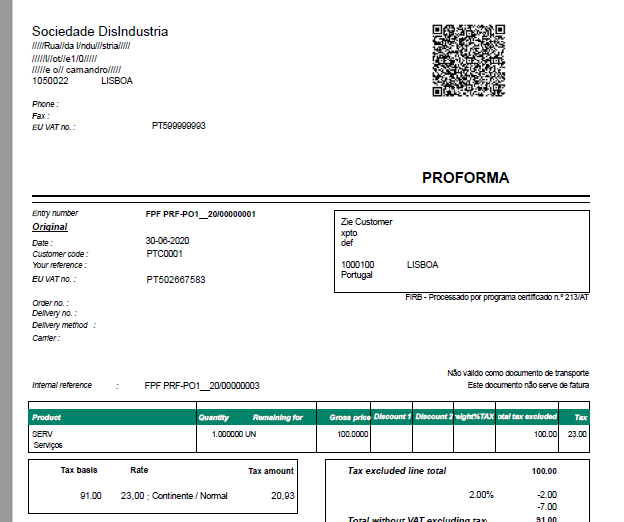

Add the IMGQRC image to the report in an area where it does not overlap existing report information and 2,5 mm from the page margins as shown in the example below.
