Stored values

Extract from sample: 0313A-TextFieldAndStoredValues

#Generate two dynamic sequences of 5 digits each and store the values

And the user stores the generated value with length 5 with the key "ENV_SEQ05A"

And the user stores the generated value with length 5 with the key "ENV_SEQ05B"

#Text field: selection of the text field and write a value defined with the following text and stored value

And the user selects the text field with name: "Source document"

And the user writes "ATP-[ENV_SEQ05A]-[ENV_SEQ05B]" to the selected text field

#Text field: selection of the text field and check it contains the exact value defined with the following text and stored value

Given the user selects the text field with name: "Source document"

Then the value of the selected text field is "ATP-[ENV_SEQ05A]-[ENV_SEQ05B]"

#Text field: selection of the text field and check it contains a value defined with the following text and stored value

Given the user selects the text field with name: "Source document"

Then the value of the selected text field contains "ATP-[ENV_SEQ05A]"

#Text field: selection of the text field and check it contains the string pattern defined with the following text and stored value

Given the user selects the text field with name: "Source document"

Then the value of the selected text field has string pattern "[ENV_SEQ05B]"

#Text field: selection of the text field and check it contains the exact value defined with the following text and stored value

Then the value of the "Source document" text field is "ATP-[ENV_SEQ05A]-[ENV_SEQ05B]"

The user stored values contained between square brackets are loaded from a user-stored-values file when the test is executed.

Extract from sample: 0313A-TextFieldAndStoredValues

#Search cell: use the search cell to filter the Document no. using a user stored value

Then the user selects search cell with header: "Document no."

And the user adds the text "[USV_INVOICE_NUMBER_01]" in selected cell and hits enter key

And the user selects cell with column header: "Document no." and row number: 1

And the user clicks on the selected cell

#Check values using user stored values

And the user selects the text field with name: "Document no."

Then the value of the selected text field is "[USV_INVOICE_NUMBER_01]"

And the user selects the text field with X3 field name: "BIS0_BPRNAM"

Then the value of the selected text field is "Kraft [USV_SUPPLIER_NAME_01]"

#Text field: selection of the text field and check it contains a value defined with the following text and / or user stored value

Given the user selects the text field with X3 field name: "BIS0_BPRNAM"

Then the value of the selected text field contains "Kraft [USV_SUPPLIER_NAME_01]"

Then the value of the selected text field contains "[USV_SUPPLIER_NAME_01]"

#Text field: selection of the text field and check it contains the string pattern defined with the following text and user stored value

Given the user selects the text field with X3 field name: "BIS0_BPRNAM"

Then the value of the selected text field has string pattern "[USV_SUPPLIER_NAME_01]"

#Text field: selection of the text field and check it contains the exact value defined with the following text and user stored value

Then the value of the "Document no." text field is "[USV_INVOICE_NUMBER_01]"

Extract from sample: 0313A-TextFieldAndStoredValues

Then the user selects the text field with name: "Document no."

#Save in memory the value of the selected text field

Given the value of the selected text field is stored

#Write the value saved in memory into the selected text field

When the user writes the stored text value to the selected text field and hits tab key

#Verify the value of the selected text field matches the value saved in memory

Then the value of the selected text field matches the stored text value

Extract from sample: 0313A-TextFieldAndStoredValues

Then the user selects the text field with name: "Document no."

#Stored value: store the value of the selected text field

Given the user stores the value of the selected text field with the key: "ENV_InvoiceReference"

#Stored value: write in the selected text field the value previously stored

When the user writes the stored text with key "ENV_InvoiceReference" in the selected text field

#Stored value: verify the value of the selected text field matches the stored value

Then the value of the selected text field matches the stored text with key "ENV_InvoiceReference"

#Stored value: write in the selected text field the stored value and hit tab key

Then the user writes the stored text with key "ENV_InvoiceReference" in the selected text field and hits tab key

#Stored value: write in the selected text field the stored value and hit enter key

Then the user writes the stored text with key "ENV_InvoiceReference" in the selected text field and hits enter key

In this example, a dynamic sequence of five digits is generated and saved into a stored value.

The dynamic sequence is generated using a timestamp to ensure the unicity of the generated sequence.

The length of the dynamic sequence can be defined between 5 and 13 digits.

Extract from sample: 0313A-TextFieldAndStoredValues

#Stored value: generate a dynamic sequence of 5 digits and store the value

And the user stores the generated value with length 5 with the key "ENV_SEQ05"

#Stored value: selection of the text field and write a value defined with the following text and stored value

Given the user selects the text field with name: "Source document"

And the user writes "ATP-[ENV_SEQ05]" to the selected text field

Extract from sample: 0313B-TextAreaFieldAndStoredValues

#Generate two dynamic sequences of 5 and 6 digits and store the values

And the user stores the generated value with length 5 with the key "ENV_SEQ05"

And the user stores the generated value with length 6 with the key "ENV_SEQ06"

#Text area: selection of the text area field and write a value with the following text and stored value

Given the user selects the text field with X3 field name: "PJMEVEN_COMMEVEN"

And the user writes "Project [ENV_SEQ05] approved for launch for amount of [ENV_SEQ06] USD" to the selected text area

#Text area: selection of the text area field and check it contains a value defined with the following text and stored value

Given the user selects the text field with X3 field name: "PJMEVEN_COMMEVEN"

Then the value of the selected text area contains

"""

Project [ENV_SEQ05] approved for launch for amount of [ENV_SEQ06] USD

"""

#Text area: selection of the text area field and write block of text defined with the following text and stored value

Given the user selects the text field with X3 field name: "PJMEVEN_COMMEVEN"

Then the user writes block of text to the selected text area

"""

Project approved for launch

Project number [ENV_SEQ05]

"""

And the user hits tab

#Text area: selection of the text area field and check it contains a value defined with the following text and stored value

Given the user selects the text field with X3 field name: "PJMEVEN_COMMEVEN"

Then the value of the selected text area contains

"""

Project number [ENV_SEQ05]

"""

Extract from sample: 0313B-TextAreaFieldAndStoredValues

The user stored values contained between square brackets are loaded from a user-stored-values file when the test is executed.

#Text area: selection of the text area field and write a value with the following text and user stored value

Given the user selects the text field with X3 field name: "PJMEVEN_COMMEVEN"

And the user writes "Project [USV_PROJECT_REFERENCE_01] approved for launch for amount of [USV_PROJECT_AMOUNT_01] USD" to the selected text area

#Text area: selection of the text area field and check it contains a value defined with the following text and user stored value

Given the user selects the text field with X3 field name: "PJMEVEN_COMMEVEN"

Then the value of the selected text area contains

"""

Project [USV_PROJECT_REFERENCE_01] approved for launch for amount of [USV_PROJECT_AMOUNT_01] USD

"""

#Text area: selection of the text area field and write block of text defined with the following text and user stored value

Given the user selects the text field with X3 field name: "PJMEVEN_COMMEVEN"

Then the user writes block of text to the selected text area

"""

Project approved for launch

Project [USV_PROJECT_REFERENCE_01]

"""

And the user hits tab

#Text area: selection of the text area field and check it contains a value defined with the following text and user stored value

Given the user selects the text field with X3 field name: "PJMEVEN_COMMEVEN"

Then the value of the selected text area contains

"""

Project [USV_PROJECT_REFERENCE_01]

"""

Extract from sample: 0313C-TextEditorAndStoredValues

#Generate a dynamic sequence of 5 digits and store the value

And the user stores the generated value with length 5 with the key "ENV_SEQ05"

#Text editor: selection of the text editor field and write a value defined with the following text and stored value

Given the user selects the text editor of section: "Header text"

When the user writes block of text to the selected text editor

"""

We would appreciate it if you would send us the corresponding payments of [ENV_SEQ05] USD

"""

#Text editor: selection of the text editor field and check it contains the exact value defined with the following text and stored value

Given the user selects the text editor of section: "Header text"

Then the value of the selected text editor is

"""

We would appreciate it if you would send us the corresponding payments of [ENV_SEQ05] USD

"""

#Text editor: selection of the text editor field and check it contains a value defined with the following text and stored value

Given the user selects the text editor of section: "Header text"

Then the value of the selected text editor contains

"""

the corresponding payments of [ENV_SEQ05]

"""

Extract from sample: 0313C-TextEditorAndStoredValues

The user stored values contained between square brackets are loaded from a user-stored-values file when the test is executed.

#Text editor: selection of the text editor field and write a value defined with the following text and user stored value

Given the user selects the text editor of section: "Header text"

When the user writes block of text to the selected text editor

"""

We would appreciate it if you would send us the corresponding payments of [USV_PAYMENT_AMOUNT_01] USD

"""

#Text editor: selection of the text editor field and check it contains the exact value defined with the following text and user stored value

Given the user selects the text editor of section: "Header text"

Then the value of the selected text editor is

"""

We would appreciate it if you would send us the corresponding payments of [USV_PAYMENT_AMOUNT_01] USD

"""

#Text editor: selection of the text editor field and check it contains a value defined with the following text and user stored value

Given the user selects the text editor of section: "Header text"

Then the value of the selected text editor contains

"""

the corresponding payments of [USV_PAYMENT_AMOUNT_01]

"""

Extract from sample: 0313D-PasswordFieldAndStoredValues

#Generate a dynamic sequence of 8 digits and save it into a stored value

And the user stores the generated value with length 8 with the key "ENV_DYN_PASSWORD"

#Password fields: Select the password and confirmation field and enter the dynamic password value

Given the user selects the password fields with name: "New password"

And the user writes "[ENV_DYN_PASSWORD]" password to the selected password field

And the user writes "[ENV_DYN_PASSWORD]" password to the selected password confirmation field

And the user hits tab

Extract from sample: 0313D-PasswordFieldAndStoredValues

The user stored values contained between square brackets are loaded from a user-stored-values file when the test is executed.

#Password fields: Select the password and confirmation field and enter the password value contained in the user stored value

Given the user selects the password fields with name: "New password"

And the user writes "[USV_PASSWORD_01]" password to the selected password field

And the user writes "[USV_PASSWORD_01]" password to the selected password confirmation field

And the user hits tab

Extract from sample: 0313E-DataTableAndStoredValues.

#Left list selection

Given the user selects the data table of left panel

Whenthe user clicks the "Purchase invoices" link on the left panel

Then the user selects search cell with header: "Site"

And the user adds the text "ATP21" in selected cell and hits enter key

And the user selects cell with column header: "Document no." and row number: 1

And the user clicks on the selected cell

#Save in memory the reference of the invoice defined in the selected cell

Given the value of the selected cell is stored

#Check that the invoice reference stored in the memory corresponds to the reference defined in the Entry number field

When the user selects the text field with name: "Entry number"

Then the value of the selected text field matches the stored cell value

Extract from sample: 0313E-DataTableAndStoredValues.

When the user selects the data table of section: "Lines"

And the user selects cell with column header: "Number" and row number: 1

#Stored value: store the reference value of the document defined in the selected cell

When the user stores the value of the selected cell with the key: "ENV_PTHNUM01"

#Stored value: check that the value of the selected cell corresponds to the stored value

Then the value of the selected cell matches the stored text with key "ENV_PTHNUM01"

#Stored value: select the editable row based on the reference defined in the stored value

Then the user selects editable row that has the stored text with the key: "ENV_PTHNUM01" in the column with header: "Number"

#Stored value: select the editable row based on the reference defined in the stored value and X3 field name (ScreenCode_FieldName)

Then the user selects editable row that has the stored text with the key: "ENV_PTHNUM01" in the column with X3 field name: "WE8ALL3_NUMORI"

#Stored value: select a row based on the reference defined in the stored value

Given the user selects row that has stored text with the key: "ENV_PTHNUM01" in column with header: "Number"

#Stored value: select the cell whose value corresponds exactly to the stored value

Then the user selects cell that matches exact with the stored text with the key: "ENV_PTHNUM01" and column header: "Number"

Extract from sample: 0313E-DataTableAndStoredValues.

#Stored value: store the value of the selected text field

Then the user selects the text field with name: "Number"

And the user stores the value of the selected text field with the key: "ENV_SOHNUM01"

#Stored value: select the row based on the reference defined in the stored value

Given the user selects the fixed data table for x3 field name: "WMCSOSTD_ARRAY_NBLIG"

When the user selects row that has stored text with the key: "ENV_SOHNUM01" in column with header: "WMCSOSTD_SOHNUM"

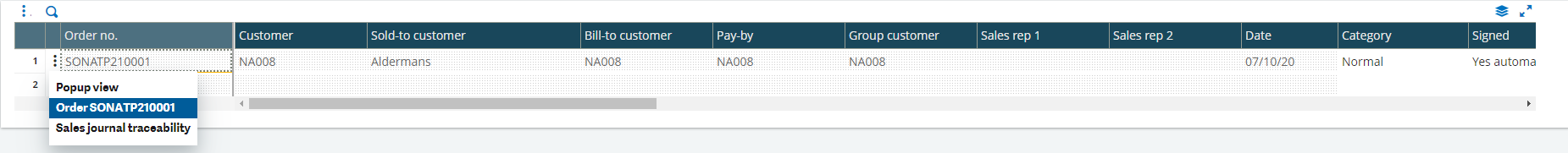

#Stored value: open a row action whose document corresponds to the stored value

Then the user opens "Order [ENV_SOHNUM01]" function on toolbox of the selected row

Extract from sample: 0313E-DataTableAndStoredValues.

#Save the value of the selected text field in memory

Then the user selects the text field with name: "Number"

And the value of the selected text field is stored

#Select the fixed row based on the reference defined in memory

Given the user selects the fixed data table for X3 field name: "WMCSOSTD_ARRAY_NBLIG"

When the user selects fixed table row that has the stored value in column with X3 field name: "WMCSOSTD_SOHNUM"

#Open a row action whose document corresponds to the value saved in memory

Then the user opens "Order" with stored value function on toolbox of the selected row

Extract from sample: 0313E-DataTableAndStoredValues.

Then the user selects the text field with name: "Entry number"

And the user stores the value of the selected text field with the key: "ENV_PIHNUM01"

#Left list selection

Given the user clicks the "Purchase invoices" link on the left panel

When the user selects the data table of left panel

Then the user selects search cell with header: "Document no."

#Stored value: add the stored value in the selected cell

Then the user adds the stored text with key: "ENV_PIHNUM01" in selected cell

#Stored value: add the stored value in the selected cell and hit tab key

Then the user adds the stored text with key: "ENV_PIHNUM01" in selected cell and hits tab key

#Stored value: add the stored value in the selected cell and hit enter key

Then the user adds the stored text with key: "ENV_PIHNUM01" in selected cell and hits enter key

Extract from sample: 0313E-DataTableAndStoredValues.

#Stored value: generate a dynamic sequence of 5 digits and store the value

And the user stores the generated value with length 5 with the key "ENV_SEQ05A"

#Stored value: selection the cell and write the value defined with the following text and stored value

Given the user selects last fixed cell with header: "Code"

And the user adds the text "ATP-[ENV_SEQ05A]-YY" in selected cell

And the user hits enter

And the user selects first row of the selected data table

#Stored value: selection of the cell and check it contains the string pattern defined with the following text and stored value

Given the user selects cell with header: "Code" of selected row

Then the value of the selected cell has string pattern "*[ENV_SEQ05A]*"

#Stored value: selection of the cell and check it contains the exact value defined with the following text and stored value

Given the user selects cell with header: "Code" of selected row

Then the value of the selected cell is "ATP-[ENV_SEQ05A]-YY"

#Stored value: selection of the cell and check it contains a value defined with the following text and stored value

Given the user selects cell with header: "Code" of selected row

Then the value of the selected cell contains "ATP-[ENV_SEQ05A]"

#Stored value: selection of the cell and check it doesn't contain the value defined with the following text and stored value

Given the user selects cell with header: "Code" of selected row

Then the value of the selected cell not is "ATX-[ENV_SEQ05A]-YY"

#Stored value: check if the row contains the value defined with the following text and stored value

Then the user checks if there is value: "ATP-[ENV_SEQ05A]-YY" in the selected row

The user stored values contained between square brackets are loaded from a user-stored-values file when the test is executed.

Extract from sample: 0313E-DataTableAndStoredValues.

Given the user selects last cell with column header: "Code description (FRA)"

And the user adds the text "ATP-[USV_CODE_01]-ZZ" in selected cell and hits enter key

And the user selects first row of the selected data table

#Stored value: selection of the cell and check it contains the string pattern defined with the following text and user stored value

Given the user selects cell with header: "Code description (FRA)" of selected row

Then the value of the selected cell has string pattern "*[USV_CODE_01]*"

#Stored value: selection of the cell and check it contains the exact value defined with the following text and user stored value

Given the user selects cell with header: "Code description (FRA)" of selected row

Then the value of the selected cell is "ATP-[USV_CODE_01]-ZZ"

#Stored value: selection of the cell and check it contains a value defined with the following text and user stored value

Given the user selects cell with header: "Code description (FRA)" of selected row

Then the value of the selected cell contains "ATP-[USV_CODE_01]"

#Stored value: selection of the cell and check it doesn't contain the value defined with the following text and user stored value

Given the user selects cell with header: "Code description (FRA)" of selected row

Then the value of the selected cell not is "ATX-[USV_CODE_01]-ZZ"

#Stored value: check if the row contains the value defined with the following text and user stored value

Then the user checks if there is value: "ATP-[USV_CODE_01]-ZZ" in the selected row

Extract from sample: 0313F-DataTableandHerachicalCellAndStoredValues.

#Store the project reference in a stored value

And the user selects the text field with name: "Project"

And the user stores the value of the selected text field with the key: "ENV_ATPPJM01"

#Open Task planning action

Then the user clicks the "Task planning" button in the header

#Data table: select the main data table of the page

And the user selects the data table with x3 field name: "PJMTAS0_ARRAY_NBLIG"

#Hierarchical cell: select the row containing the project reference saved in the stored value and check the status of the current line

Given the user selects row that has the hierarchical cell with the stored text with key: "ENV_ATPPJM01"

When the user selects cell with header: "Status" of selected row

Then the value of the selected cell is "New"

#Hierarchical cell: select the required hierarchical cell containing the project reference saved in the stored value

Given the user selects hierarchical cell with the stored text with key: "ENV_ATPPJM01"

Extract from sample: 0313G-LeftPanelAndStoredValues.

#Left panel: select the required data using the left list

When the user clicks the "Supplier categories" link on the left panel

Given the user selects the data table of left panel

#Search cell: use the search cell to filter the category using a stored value

Then the user selects search cell with header: "Category"

And the user adds the text "[ENV_BSGCOD1]" in selected cell and hits enter key

And the user selects cell with column header: "Category" and row number: 1

And the user clicks on the selected cell

Extract from sample: 0313G-LeftPanelAndStoredValues.

#Left panel: select the required data using the left list

When the user clicks the "Supplier categories" link on the left panel

Given the user selects the data table of left panel

#Search cell: use the search cell to filter the category using a stored value

Then the user selects search cell with header: "Category"

And the user adds the stored text with key "ENV_BSGCOD2" in selected cell and hits enter key

And the user selects cell with column header: "Category" and row number: 1

And the user clicks on the selected cell

Extract from sample: 0313H-PickingListAndStoredValues.

#Left panel: open the picking left list and select the required document

Given the user clicks the "Open items" link on the left panel

When the user selects the data table of left panel

Then the user selects search cell with header: "Number"

And the user adds the text "[ENV_ATPBISNU04]" in selected cell and hits enter key

And the user selects cell with column header: "Number" and row number: 1

And the user clicks on the selected cell

Extract from sample: 0313H-PickingListAndStoredValues.

#Left panel: open the picking list

Given the user clicks the "Order selection" link on the left panel

When the user selects the main picking list panel of the screen

And the user clicks the "Expand all" button in the left top bar of the selected picking list

#pattern selection using stored values

And the user selects the item containing string pattern "[ENV_ATPSOHNUM01]*[ENV_ATPBPCORD01]*" of the picking list panel

And the user expands the selected picking list panel item

#pattern selection using user stored values and hard coded text

And the user selects the item containing string pattern "[USV_ITMREF01]*[USV_ATPQTY01]*UN" of the picking list panel next level

#Picking of the selected item

And the user checks the selected picking list panel item

#Unpicking of the selected item

And the user unchecks the selected picking list panel item

#Left panel: collapse the picking left list

And the user clicks the "Collapse all" button in the left top bar of the selected picking list

Extract from sample: 0313H-PickingListAndStoredValues.

#Left panel: open the picking list and select the required order defined in the stored value

Given the user clicks the "Order selection" link on the left panel

When the user selects the main picking list panel of the screen

And the user clicks the "Expand all" button in the left top bar of the selected picking list

And the user selects the item with the stored text with key "ENV_ATPSOHNUM01" and with the text containing "NA008" of the picking list panel

And the user expands the selected picking list panel item

And the user selects the item "BMS012 PCI E 128 Mb graphics adapter Remains to be delivered 4 UN" of the picking list panel next level

#Picking of the selected item

And the user checks the selected picking list panel item

#Unpicking of the selected item

And the user unchecks the selected picking list panel item

#Left panel: collapse the picking left list

And the user clicks the "Collapse all" button in the left top bar of the selected picking list

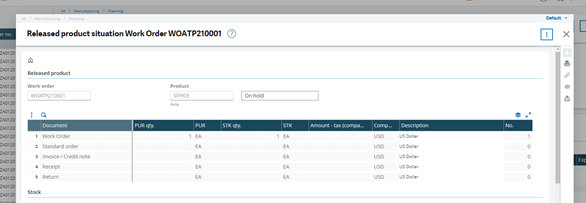

Extract from sample: 0313I-ModalDialogAndStoredValues.

#Modal dialog: check the modal dialog using both text and stored value

When the modal dialog "Released product situation Work Order [ENV_MFGNUM01]" is displayed

Extract from sample: 0313J-AlertBoxManagementAndStoredValues.

#Duplicate the invoice

Then the user selects the text field with name: "Document no."

#Save the invoice reference in memory

And the value of the selected text field is stored

And the user writes "" to the selected text field and hits enter key

#Alert box: check that the alert box appears with the message containing the reference previously stored in memory

Then an alert box with the text containing "Reference entered on invoice" and the stored text value appears

Extract from sample: 0313K-LogPanelAndStoredValues

#Log panel: check the confirmation message is returned in the log using both text and stored value

Then the selected log panel includes the confirmation message "Validated document: "[ENV_ATPBISNUM02]"

Extract from sample: 0313K-LogPanelAndStoredValues.

#Extract the supplier invoice from the log and save it in a stored value

Given the user selects the main data table of the page

#This step definition will always select the 1st occurrence of the text searched

When the user selects the log panel line containing text "Validated"

#This step definition allows to define the occurrence of the text searched, and to select an occurrence from 1 to 10

When the user selects the log panel line containing text "Validated" occurrence 1

Then the user extracts the value from the selected log panel line starting at 21 for 17 characters and stores it in key "ENV_ATPBISNUM02B"
